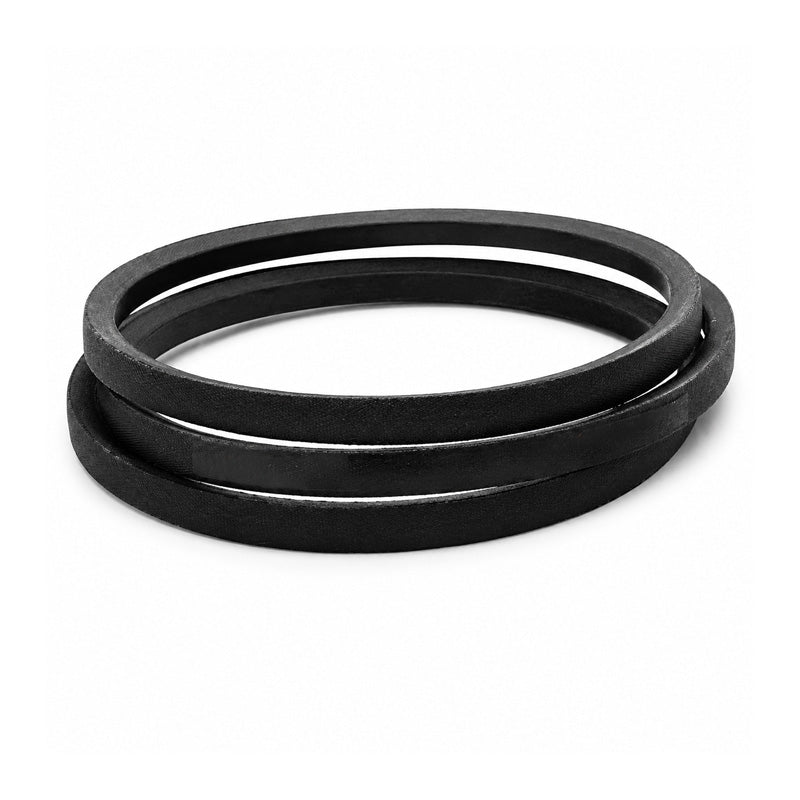

Z28 Premier Quality Z-Section V-Belt

Z Section Classic Type V Belts: Premier longer life classic 10x6mm (3/8x1/4 inch) belts, most often used in industrial drives and are recommended for special applications such as reverse idlers. A hugely versitile belt that has been an industry standard for many years.
Benefits: Premium quality, Universal classical profile to fit ISO 4183/4184 pulleys, Low stretch polyester tensile member, Oil, ozone and abrasion resistant, Temperature resistance: -20deg C to +70deg C, Static conductive to ISO 1813
Note: Matched Pairs: All V Belts conform to DIN 2215 (For Classic V Belts Z, A, B, C, D, etc) and DIN 7753 (For Wedge Type Belts SPZ, SPA, SPB etc) and ISO 4184 and as such will match taking into account dimensional tolerances. If you require belts from the same batch, please contact our Sales Support Team who will gladly assist you further.

Brand / Quality:

Premier - High Quality

Belt Number:

Z28

Inside Length Approx:

28 inch = 711mm

Outside Length Approx:

29.5 inch = 749mm

Belt Width Approx:

10mm

Belt Depth Approx:

6mm

Belt Datum Length Approx:

28.75 inch = 730mm
