• IKO YT4025 Drawn Cup Open End Type Full Complement Needle Roller Bearing 40x50x25mm
  • IKO YT4025 Drawn Cup Open End Type Full Complement Needle Roller Bearing 40x50x25mm
  • IKO YT4025 Drawn Cup Open End Type Full Complement Needle Roller Bearing 40x50x25mm
1 3

SKU: YT.4025

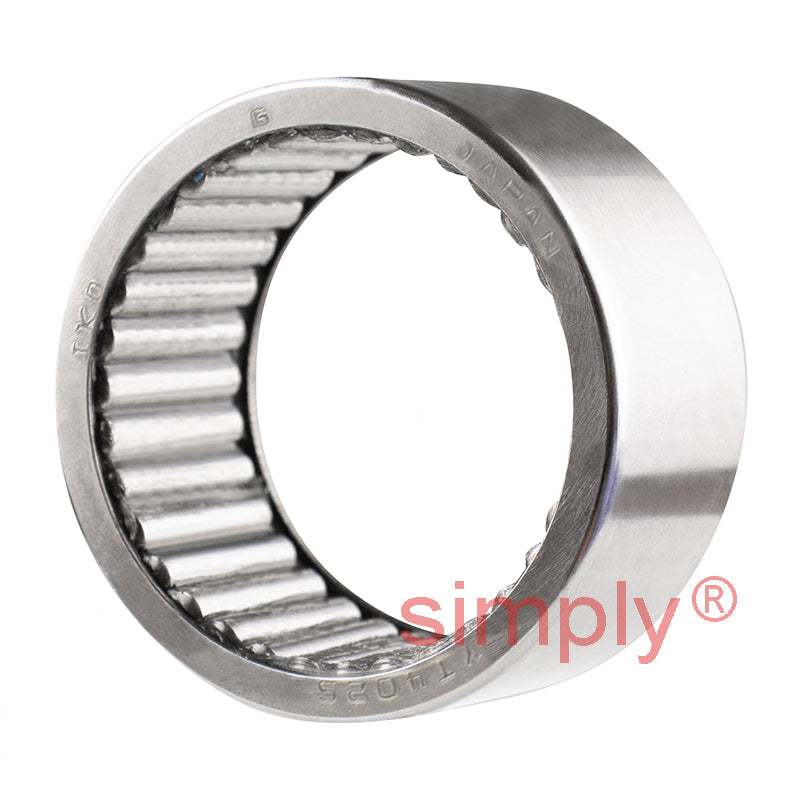

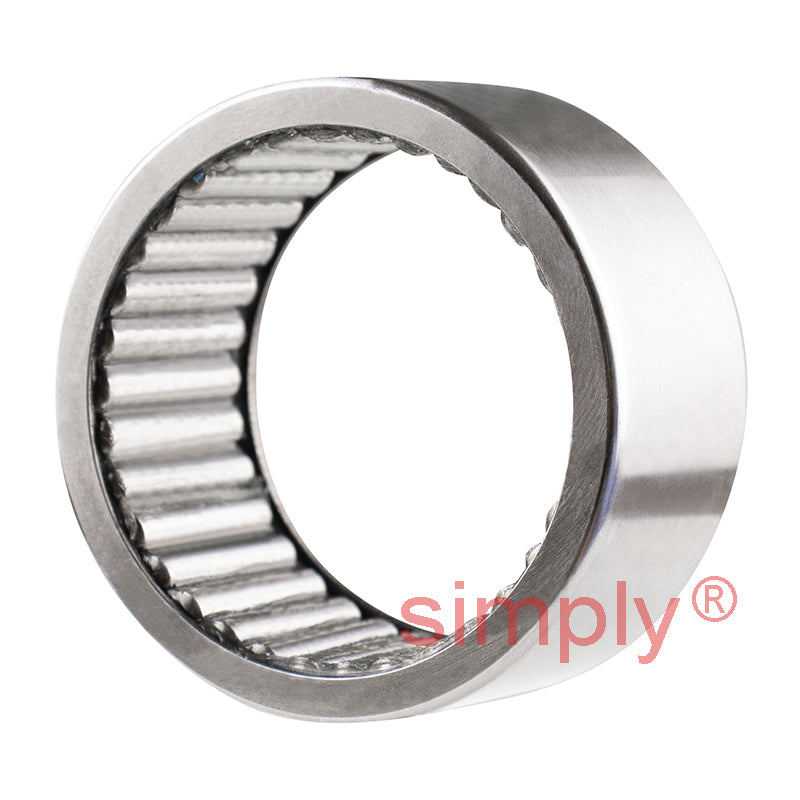

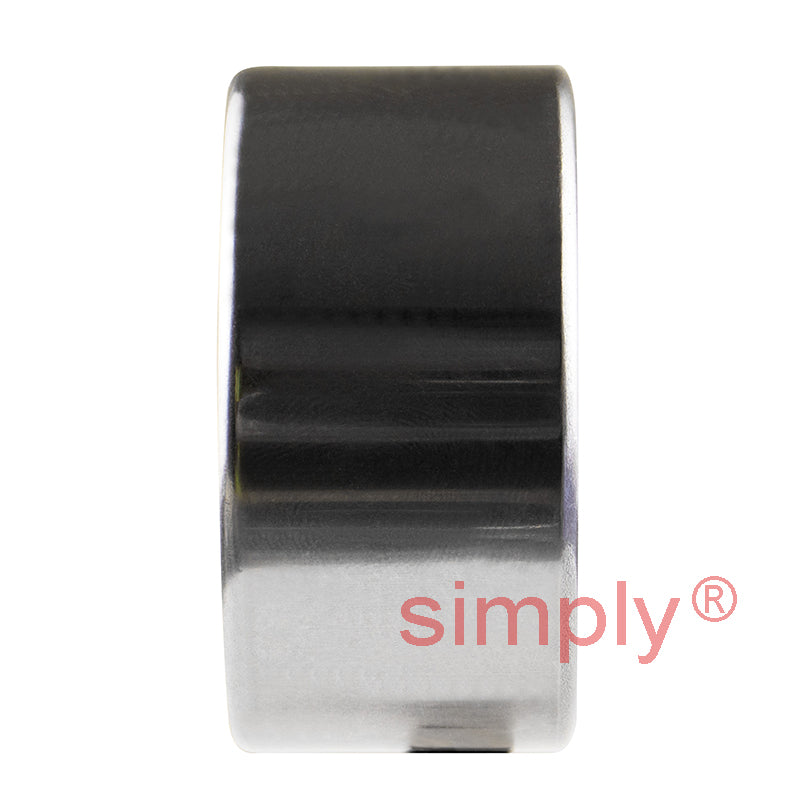

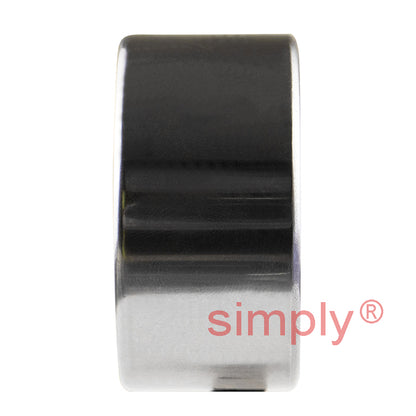

IKO YT4025 Drawn Cup Open End Type Full Complement Needle Roller Bearing 40x50x25mm

IKO YT4025 Drawn Cup Open End Type Full Complement Needle Roller Bearing 40x50x25mm
€23,13 ex VAT
€23,13 ex VAT
Sale Sold out

Low stock

Price Break
10+ €20,59
19+ €19,43
29+ €19,20
39+ €18,97
49+ €18,74
74+ €18,50
99+ €17,35
199+ €17,12
249+ €16,88
499+ €16,65
999+ €16,19
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

YT and YTL Drawn Cup Needle Roller Bearings : As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required.
Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs.
Brand / Quality:
IKO - High Quality
Inside Diameter:
40mm
Outside Diameter:
50mm
Width:
25mm
Technical
Fw 40mm
D 50mm
C 25mm
Dynamic load 55300 N
Static load 114000 N
Inner ring IRT3525
Weight 109 g
