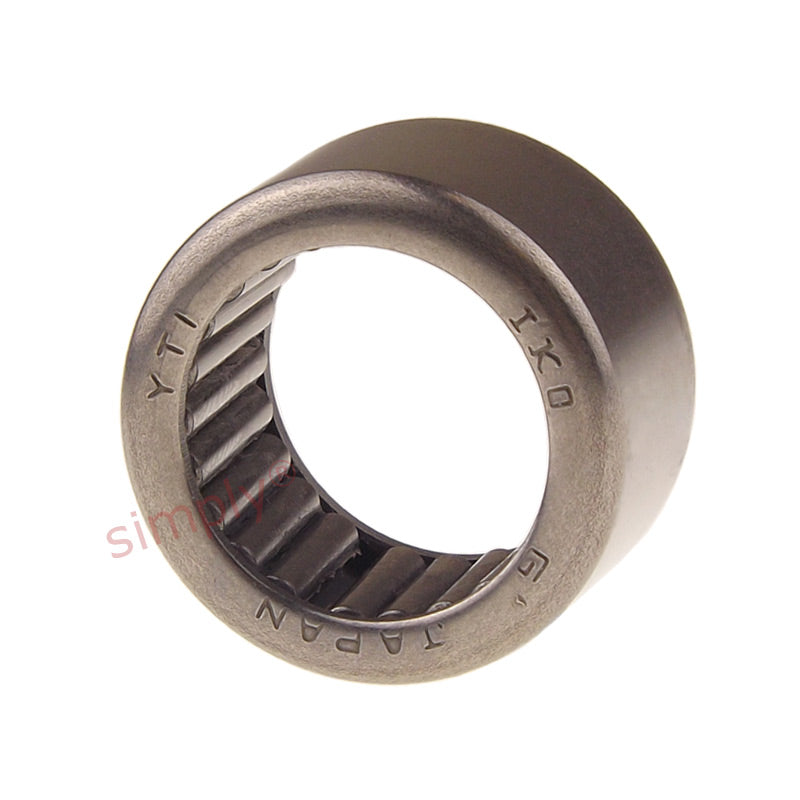

IKO YT202820 Drawn Cup Open End Type Full Complement Needle Roller Bearing 20x28x20mm

Name: IKO YT202820 Drawn Cup Open End Type Full Complement Needle Roller Bearing 20x28x20mm
Brand: IKO
SKU: YT.202820
Price: 11.02 EUR
Availability: InStock

€11,02 ex VAT

Sale Sold out

In stock

Price Break

10+ €9,81

19+ €9,26

29+ €9,15

39+ €9,04

49+ €8,93

74+ €8,82

99+ €8,27

199+ €8,15

249+ €8,04

499+ €7,93

999+ €7,71

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

YT and YTL Drawn Cup Needle Roller Bearings : As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required.
Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs.

Brand / Quality:: IKO - High Quality
Inside Diameter:: 20mm
Outside Diameter:: 28mm
Width:: 20mm

Technical

Fw	20mm
D	28mm
C	20mm
Dynamic load	26800 N
Static load	44600 N
Inner ring	IRT1520-2
Weight	37.5 g
