SKU: YT.2015

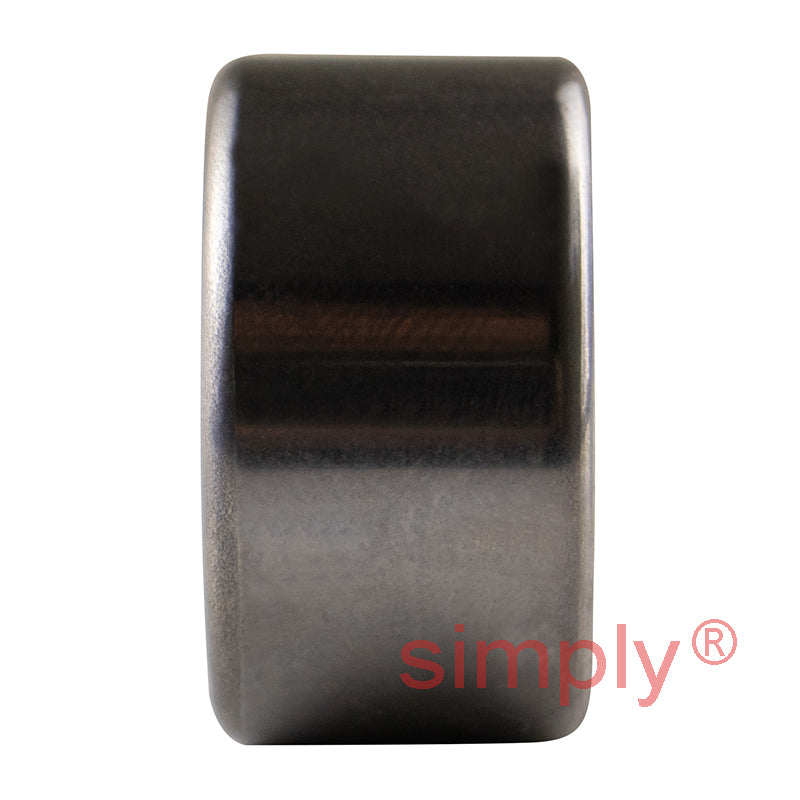

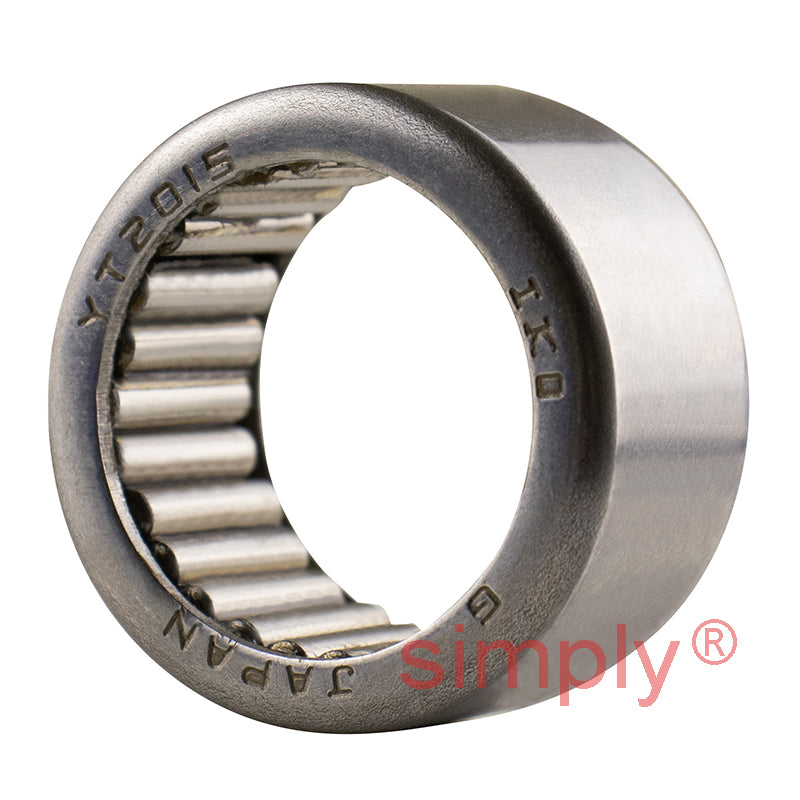

Major Brand YT2015 Drawn Cup Open End Type Needle Roller Bearing 20x27x15mm

Name: Major Brand YT2015 Drawn Cup Open End Type Needle Roller Bearing 20x27x15mm
Brand: Major Brand
SKU: YT.2015
Price: 10.16 EUR
Availability: InStock

€10,16 ex VAT

Sale Sold out

In stock

Price Break

10+ €9,04

19+ €8,53

29+ €8,43

39+ €8,33

49+ €8,23

74+ €8,13

99+ €7,62

199+ €7,52

249+ €7,42

499+ €7,32

999+ €7,11

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

YT and YTL Drawn Cup Needle Roller Bearings : As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required.
Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs.

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 20mm
Outside Diameter:: 27mm
Width:: 15mm

Technical

Fw	20mm
D	27mm
C	15mm
Dynamic load	18400 N
Static load	30900 N
Inner ring	IRT1515-2
Weight	23.5 g
