SKU: YAT209-111-SKF

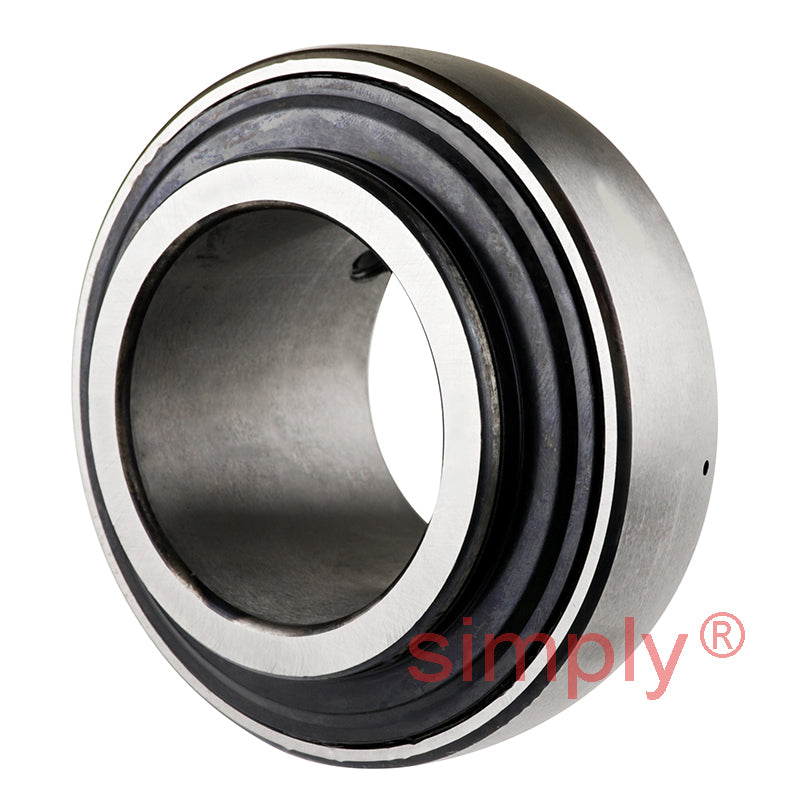

SKF YAT209-111 Grub Screw Type Bearing Insert 1-11/16 inch Bore 85mm Outside Diameter
SKF YAT209-111 Grub Screw Type Bearing Insert 1-11/16 inch Bore 85mm Outside Diameter
Regular price
€54,58
ex VAT
Regular price
Sale price
€54,58
ex VAT
In stock
Price Break
10+
€48,58
19+
€45,85
29+
€45,30
39+
€44,76
49+
€44,21
74+
€43,66
99+
€40,94
199+
€40,39
249+
€39,84
499+
€39,30
999+
€38,21
Couldn't load pickup availability
Description
Description
|

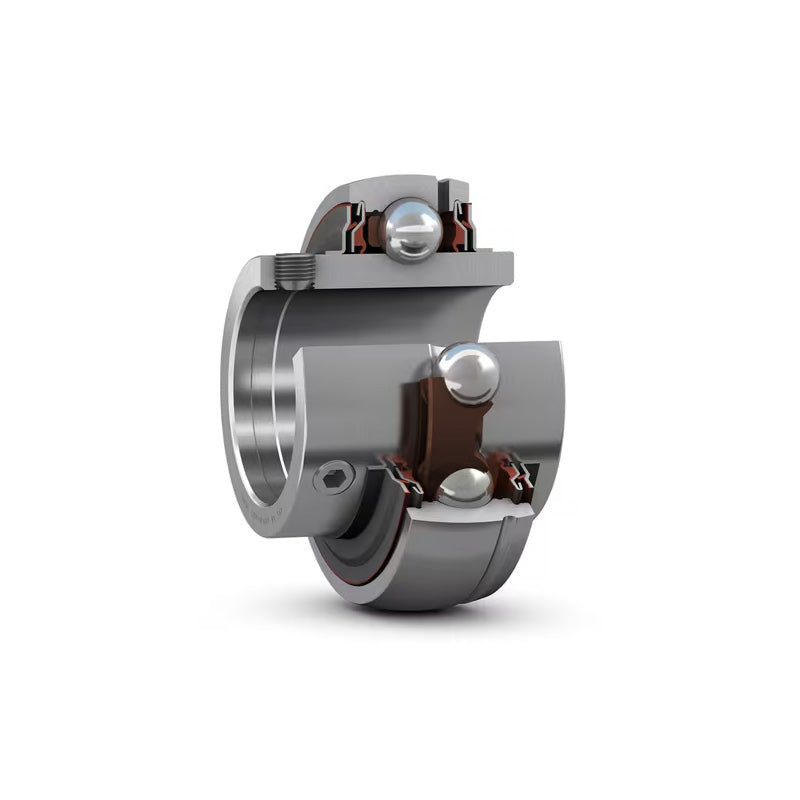

SKF YAT-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAT 2 series bearings have an extended inner ring on one side and are sealed with the rugged standard integral seal. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Outside Diameter:
- 85mm
- Style:
- YAT
Technical
Technical
| d | 1-11/16 inch |
|---|---|
| D | 85mm |
| B | 41.5mm |
| C | 22mm |
| d1 | 56.8mm |
| s1 | 30.5mm |
| r1r2 min | 1mm |
| Static load Cr | 21.6 kN |
| Dynamic load Cor | 33.2 kN |
| Fatigue load limit Pu | 0.915 kN |
| Limiting speed | 4300 rpm |
| Weight | 0.65 kg |
