SKU: YAT207-SKF

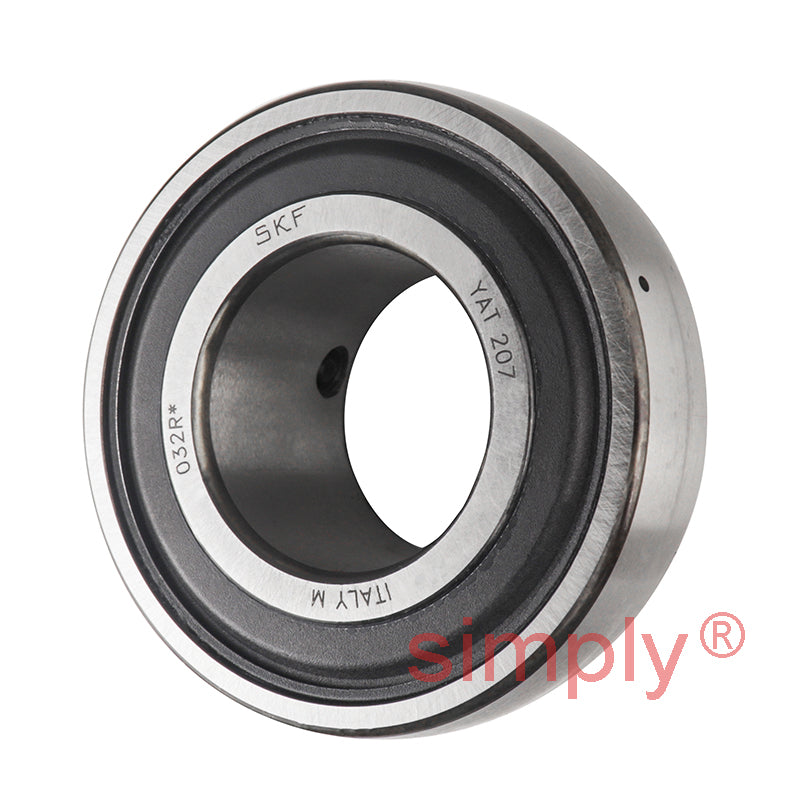

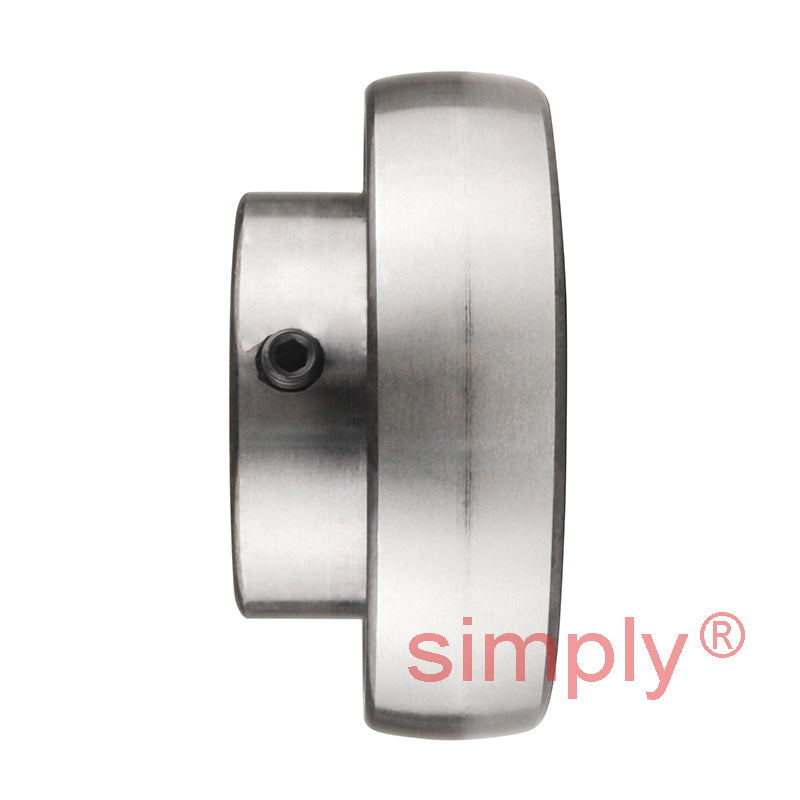

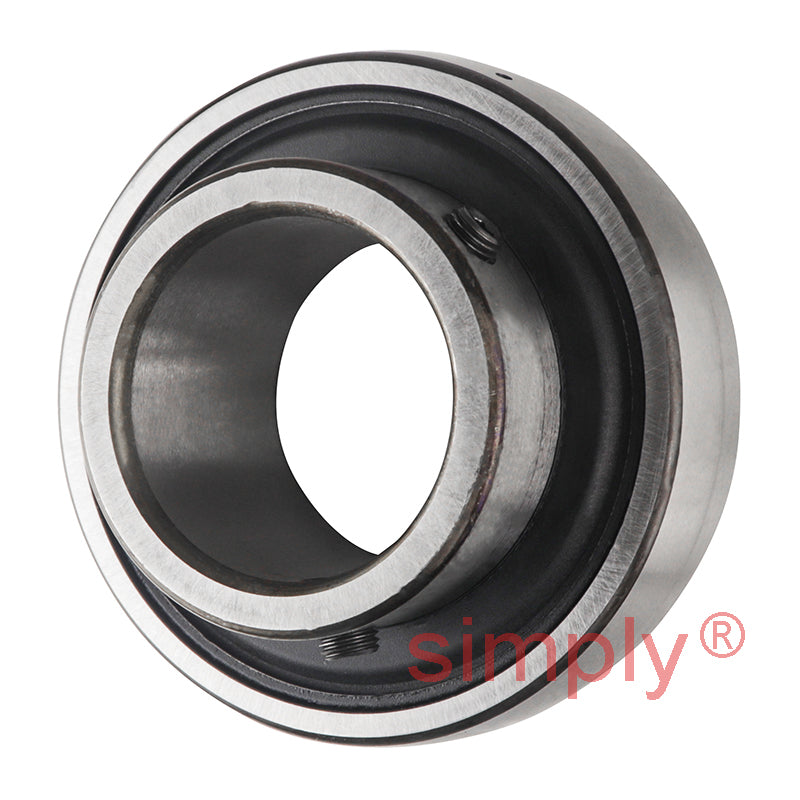

SKF YAT207 Grub Screw Type Bearing Insert with 35mm Bore 72mm Outside Diameter
SKF YAT207 Grub Screw Type Bearing Insert with 35mm Bore 72mm Outside Diameter
Regular price
€32,48
ex VAT
Regular price
Sale price
€32,48
ex VAT
In stock
Price Break
10+
€28,91
19+
€27,28
29+
€26,96
39+
€26,63
49+
€26,31
74+
€25,98
99+
€24,36
199+
€24,04
249+
€23,71
499+
€23,39
999+
€22,74
Couldn't load pickup availability
Description
Description
|
SKF YAT-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAT 2 series bearings have an extended inner ring on one side and are sealed with the rugged standard integral seal. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Style:
- YAT
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| B | 33mm |
| C | 19mm |
| d1 | 46.1mm |
| s1 | 23.3mm |
| r1r2 min | 1mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit Pu | 0.655 kN |
| Limiting speed | 5300 rpm |
| Weight | 0.31 kg |
