SKU: YAT205-015-SKF

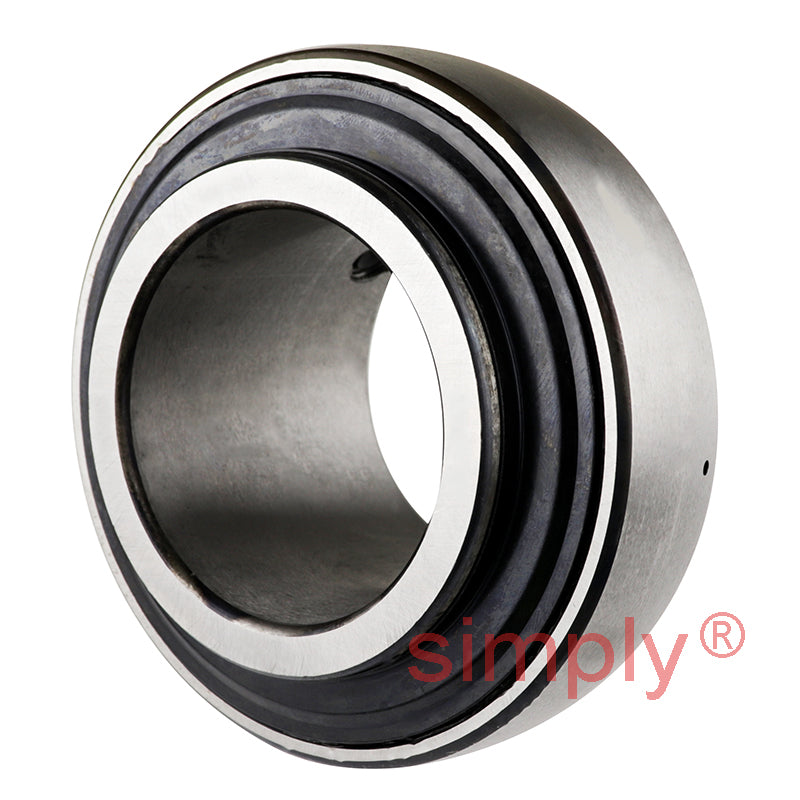

SKF YAT205-015 Grub Screw Type Bearing Insert 15/16 inch Bore 52mm Outside Diameter
SKF YAT205-015 Grub Screw Type Bearing Insert 15/16 inch Bore 52mm Outside Diameter
Regular price
€58,08
ex VAT
Regular price
Sale price
€58,08
ex VAT
In stock
Price Break
10+
€51,69
19+
€48,79
29+
€48,21
39+
€47,63
49+
€47,04
74+
€46,46
99+
€43,56
199+
€42,98
249+
€42,40
499+
€41,82
999+
€40,66
Couldn't load pickup availability
Description
Description
|

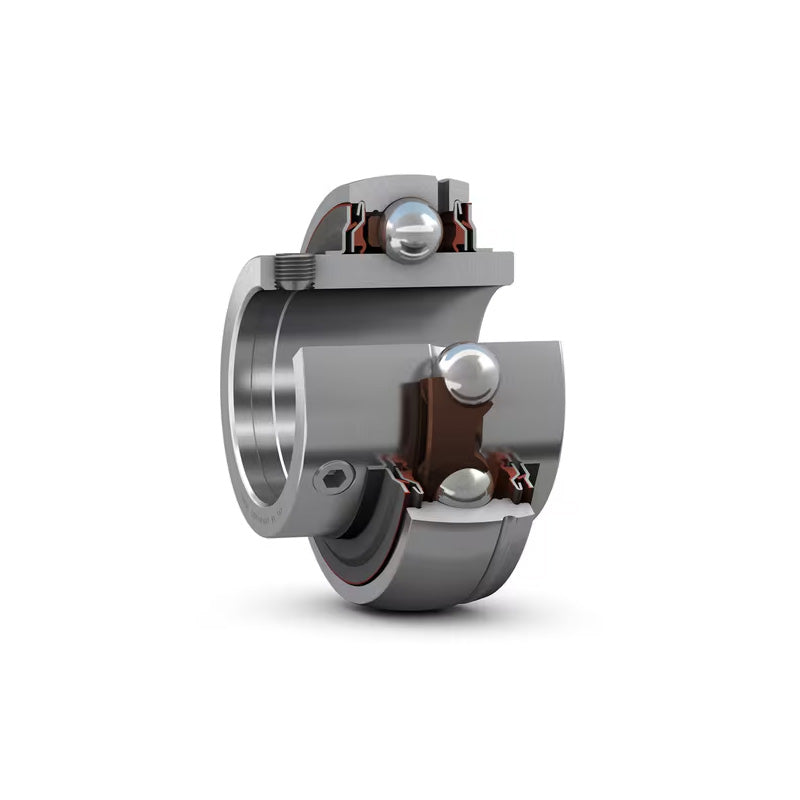

SKF YAT-2 Y-bearings with Grub Screws: These bearings are manufactured from high-grade carbon chromium steel. They are suitable for applications where the direction of rotation is constant or alternating. YAT 2 series bearings have an extended inner ring on one side and are sealed with the rugged standard integral seal. The outer ring has two lubrication holes as standard. Benefits: Lubrication holes allow easy re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 23.81mm = 0.937 (15/16) inch
- Outside Diameter:
- 52mm
- Style:
- YAT
Technical
Technical
| d | 15/16 inch |
|---|---|
| D | 52mm |
| B | 27.2mm |
| C | 15mm |
| d1 | 33.7mm |
| s1 | 19.5mm |
| r1r2 min | 0.6mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 14 kN |
| Fatigue load limit Pu | 335 kN |
| Limiting speed | 7000 rpm |
| Weight | 0.18 kg |
