SKU: YAR207-107-2FW/VA228-SKF

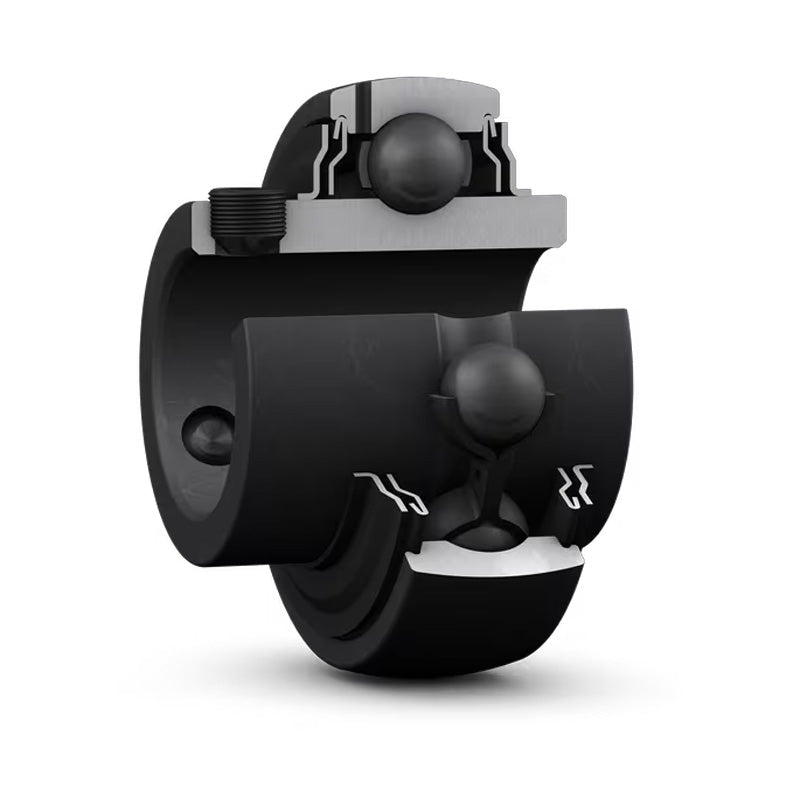

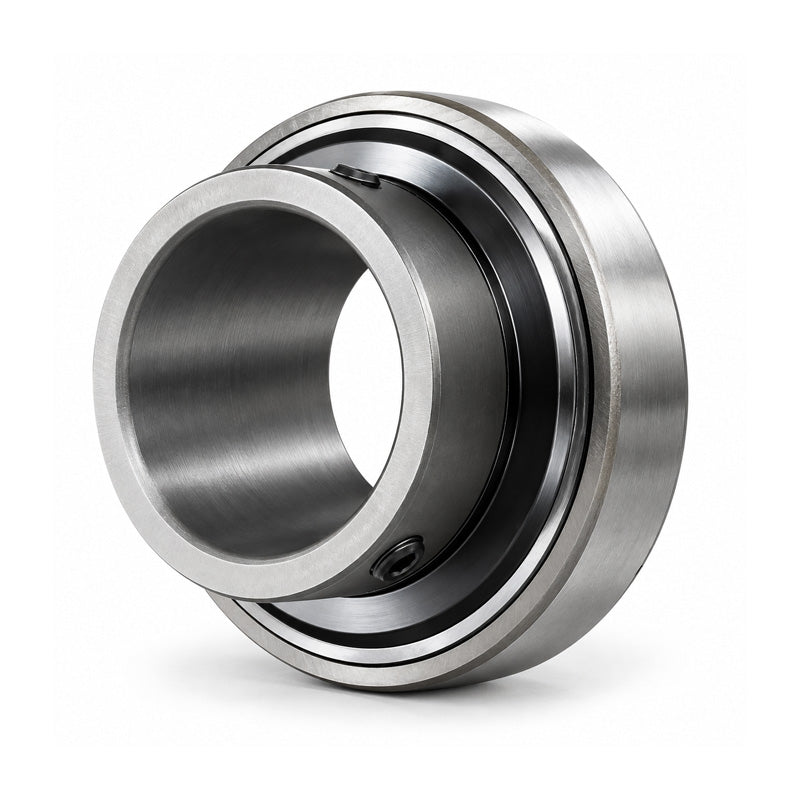

SKF YAR2071072FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1-7/16 inch shaft

Name: SKF YAR2071072FWVA228 Y Bearing Insert for High Temperature Application with Graphite Cage and Grub Screw Location 1-7/16 inch shaft
Brand: SKF
SKU: YAR207-107-2FW/VA228-SKF
Price: 213.14 EUR
Availability: InStock

€213,14 ex VAT

Sale Sold out

In stock

Price Break

10+ €162,33

19+ €153,21

29+ €151,39

39+ €149,56

49+ €147,74

74+ €145,92

99+ €136,80

199+ €134,97

249+ €133,15

499+ €131,32

999+ €127,68

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF High Temperature Bearing Inserts: VA228 types have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING. They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -50 to +350 deg Celsius

Brand / Quality:: SKF - High Quality
Inside Diameter:: 36.51mm = 1.437 (1-7/16) inch
Temperature Range:: High Temp

Technical

d	1-7/16 inch
D	72mm
B	42.9mm
C	19mm
d1	46.1mm
s1	25.4mm
r1r2 min	1mm
Dynamic load C	25.5 kN
Static load Co	15.3 kN
Weight	0.42 kg
