SKU: WSZC90-JCS

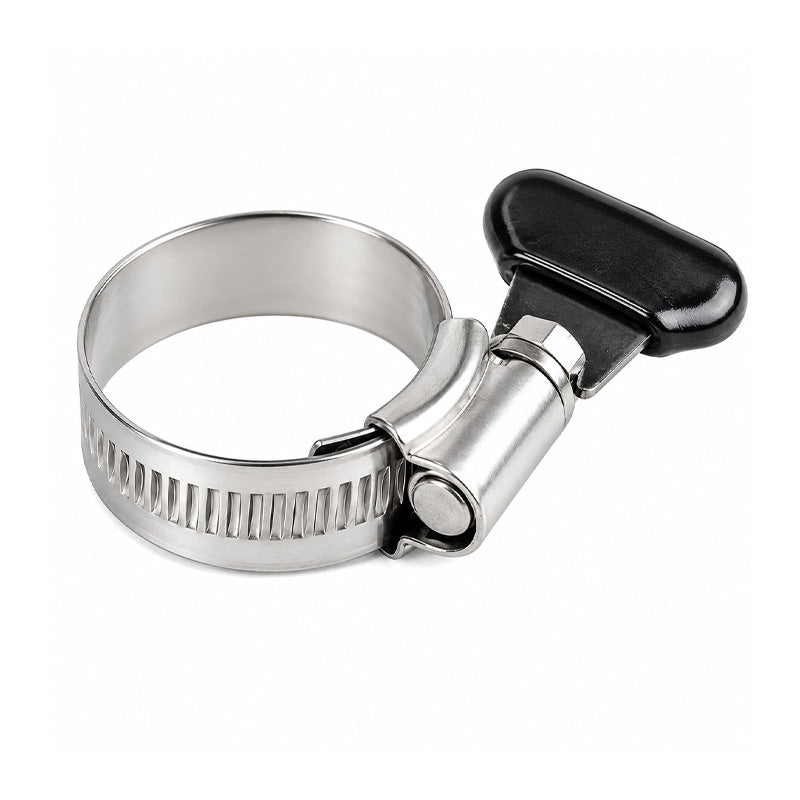

JCS WSZC90 Zinc Plated Steel Hi-Grip Wing Screw Adjustment Range 70-90mm Band Width 13mm
JCS WSZC90 Zinc Plated Steel Hi-Grip Wing Screw Adjustment Range 70-90mm Band Width 13mm
Regular price
€6,66
ex VAT
Regular price
Sale price
€6,66
ex VAT
In stock
Price Break
10+
€5,93
19+
€5,59
29+
€5,53
39+
€5,46
49+
€5,39
74+
€5,33
99+
€5,00
199+
€4,93
249+
€4,86
499+
€4,80
999+
€4,66
Couldn't load pickup availability
Description
Description
Zinc Plated Steel Hi-Grip Wing Screw: Specifically designed for frequently removed hoses, the unique dovetail locking and side lugs of the wing plate ensure excellent sealing and longevity. Used for a wide variety of domestic, automotive and industrial applications, the standard Hi-Grip hose clip is made from mild steel, electroplated, passivated and tested to EN9227. Hi-Grip general-purpose worm drive hose clips are widely regarded for their quality, durability and ability to withstand a great deal of abuse.
- Brand / Quality:
- JCS - High Quality
- Width:
- 13mm
- Min Adjustment Range:
- 70mm
- Max Adjustment Range:
- 90mm
Technical
Technical
| BS No. | 90 |
|---|---|
| Adjustment Range (mm) | 70-90mm |
| Adjustment Range (inch) | 2-3/4 - 3-1/2 inch |
| A | 7mm |
| B | 37mm |
| C | 12mm |
| D | 16mm |
| E | 13mm |
| F | 0.9mm |
| G | 24mm |
| Recommended Torque Nm | 6Nm |
| Recommended Torque lb-in | 54lb-in |
