SKU: WSZC30-JCS

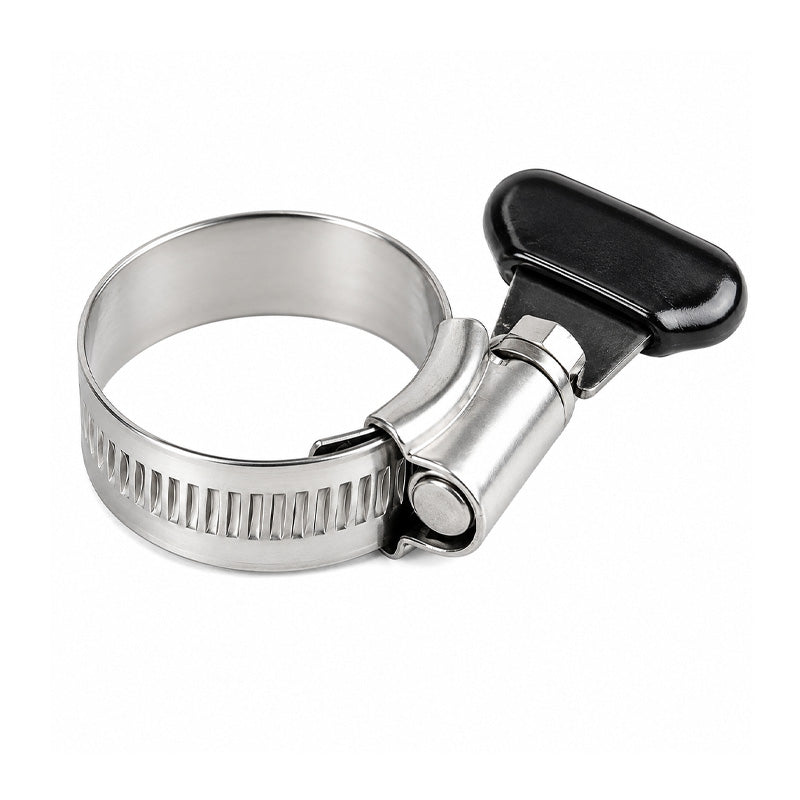

JCS WSZC30 Zinc Plated Steel Hi-Grip Wing Screw Adjustment Range 22-30mm Band Width 13mm
JCS WSZC30 Zinc Plated Steel Hi-Grip Wing Screw Adjustment Range 22-30mm Band Width 13mm
Regular price
€5,49
ex VAT
Regular price
Sale price
€5,49
ex VAT
In stock
Price Break
3+
€4,18
5+
€3,95
9+
€3,90
19+
€3,86
49+
€3,81
74+
€3,76
99+
€3,53
199+
€3,48
249+
€3,43
499+
€3,39
999+
€3,29
Share this product
Description
Description
Zinc Plated Steel Hi-Grip Wing Screw: Specifically designed for frequently removed hoses, the unique dovetail locking and side lugs of the wing plate ensure excellent sealing and longevity. Used for a wide variety of domestic, automotive and industrial applications, the standard Hi-Grip hose clip is made from mild steel, electroplated, passivated and tested to EN9227. Hi-Grip general-purpose worm drive hose clips are widely regarded for their quality, durability and ability to withstand a great deal of abuse.
- Brand / Quality:
- JCS - High Quality
- Width:
- 13mm
- Min Adjustment Range:
- 22mm
- Max Adjustment Range:
- 30mm
Technical
Technical
| BS No. | 30 |
|---|---|
| Adjustment Range (mm) | 22-30mm |
| Adjustment Range (inch) | 7/8 - 1-1/8 inch |
| A | 8mm |
| B | 32mm |
| C | 12mm |
| D | 15mm |
| E | 13mm |
| F | 0.9mm |
| G | 24mm |
| Recommended Torque Nm | 5Nm |
| Recommended Torque lb-in | 45lb-in |
