SKU: WSZC25-JCS

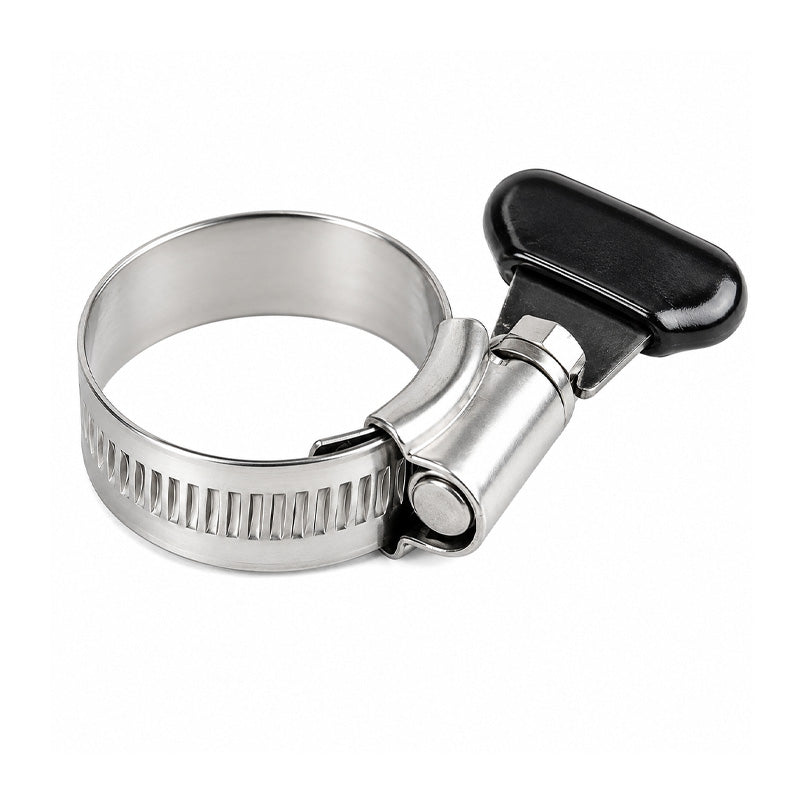

JCS WSZC25 Zinc Plated Steel Hi-Grip Wing Screw Adjustment Range 17-25mm Band Width 13mm
JCS WSZC25 Zinc Plated Steel Hi-Grip Wing Screw Adjustment Range 17-25mm Band Width 13mm
Regular price
€5,45
ex VAT
Regular price
Sale price
€5,45
ex VAT
In stock
Price Break
3+
€4,15
5+
€3,91
9+
€3,87
19+
€3,82
49+
€3,77
74+
€3,73
99+
€3,49
199+
€3,45
249+
€3,40
499+
€3,35
999+
€3,26
Share this product
Description
Description
Zinc Plated Steel Hi-Grip Wing Screw: Specifically designed for frequently removed hoses, the unique dovetail locking and side lugs of the wing plate ensure excellent sealing and longevity. Used for a wide variety of domestic, automotive and industrial applications, the standard Hi-Grip hose clip is made from mild steel, electroplated, passivated and tested to EN9227. Hi-Grip general-purpose worm drive hose clips are widely regarded for their quality, durability and ability to withstand a great deal of abuse.
- Brand / Quality:
- JCS - High Quality
- Width:
- 13mm
- Min Adjustment Range:
- 17mm
- Max Adjustment Range:
- 25mm
Technical
Technical
| BS No. | 25 |
|---|---|
| Adjustment Range (mm) | 17-25mm |
| Adjustment Range (inch) | 3/4 - 1 inch |
| A | 8mm |
| B | 32mm |
| C | 12mm |
| D | 15mm |
| E | 13mm |
| F | 0.9mm |
| G | 24mm |
| Recommended Torque Nm | 5Nm |
| Recommended Torque lb-in | 45lb-in |
