SKU: WMO-80100-100

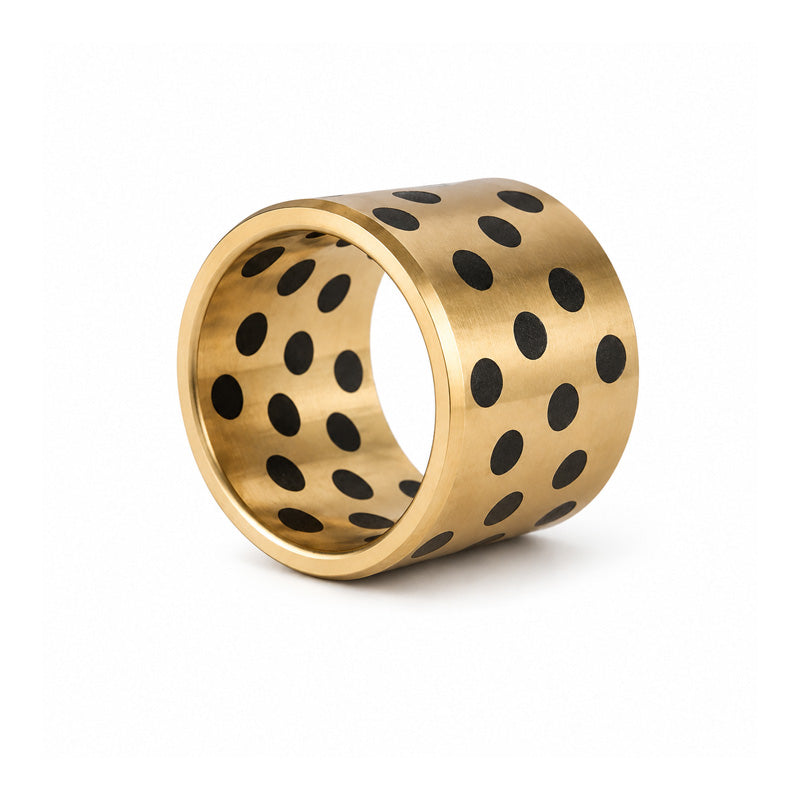

WMO80100100 Plain Oilless Bronze Bush 80x100x100mm - Allow 2-3 Days
WMO80100100 Plain Oilless Bronze Bush 80x100x100mm - Allow 2-3 Days
Regular price
€258,98
ex VAT
Regular price
Sale price
€258,98
ex VAT
Equivalent to: WMO80100100
In stock
Price Break
3+
€219,40
5+
€210,54
9+
€206,11
19+
€199,46
49+
€195,03
74+
€183,94
99+
€155,13
199+
€0,00
249+
€0,00
499+
€0,00
999+
€0,00
Description
Description
Oilless Bronze Bush Bearings: These bushes are manufactured from CuZn25Al6Mn4 high-strength bronze with specially formed solid graphite lubricant inserts. These bushes can operate at temperatures up to +300 deg C while also capable of cryogenic temperatures as low as -200 deg C. Also, these bushes provide outstanding resistance to chemicals and corrosion. Suitable for dry, wet or humid environments.
Benefits: Lubricated for life, greatly reduces the cost of maintenance, outstanding chemical and corrosion resistance
Equivalent: WMO80100100
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 100mm
- Length:
- 100mm
- Item Type:
- Plain
Technical
Technical
| d | 80mm |
|---|---|
| D | 100mm |
| L | 100mm |
| PV | 3.3 max (N/mm? x m/s) |
| Static load | 100 max (N/mm?) |
| Sliding speed | 0.3 max (m/s) |
| Operating temperature | Up to 300 (?C) |
| Coefficient of thermal expansion | 19 x 10-5/?C |
| Coefficient of friction | 0.16 |
| Hardness | 210 min (HB) |
| Tensile strength | 750 min (N/mm?) |
| Elongation | 12 min (%) |
| Density | 8 (g/cm?) |
| Max rpm | 59.683 rpm |
| Max load | 81549.44 kg |
| Housing Tolerance | H7 |
