SKU: WMO-2535-40

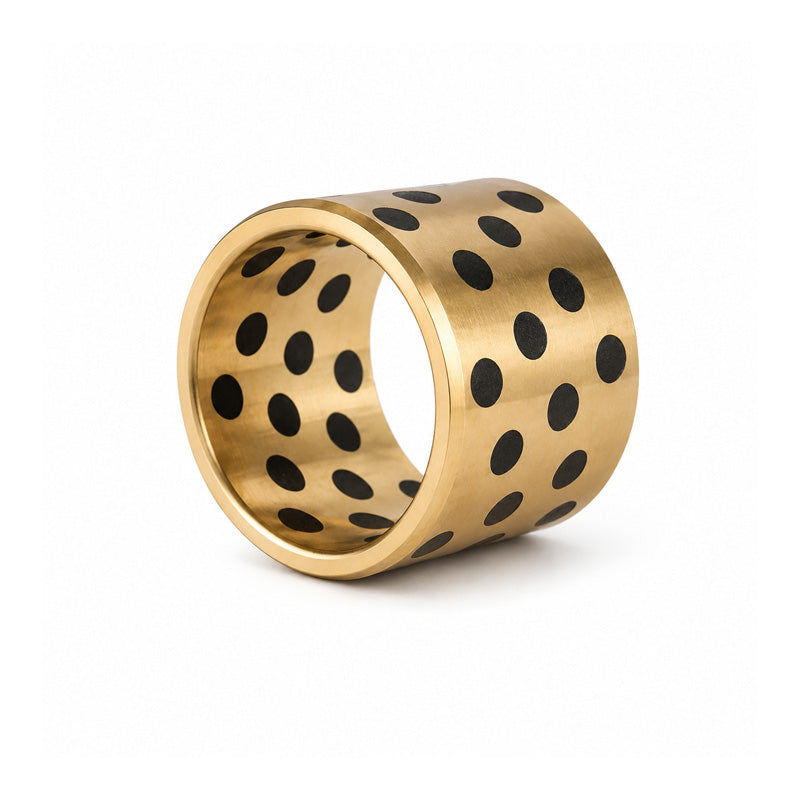

WMO253540 Plain Oilless Bronze Bush 25x35x40mm - Allow 2-3 Days
WMO253540 Plain Oilless Bronze Bush 25x35x40mm - Allow 2-3 Days
Regular price
€20,70
ex VAT
Regular price
Sale price
€20,70
ex VAT
Equivalent to: WMO253540
In stock
Price Break
3+
€17,53
5+
€16,82
9+
€16,47
19+
€15,94
49+
€15,58
74+
€14,70
99+
€12,40
199+
€0,00
249+
€0,00
499+
€0,00
999+
€0,00
Description
Description
Oilless Bronze Bush Bearings: These bushes are manufactured from CuZn25Al6Mn4 high-strength bronze with specially formed solid graphite lubricant inserts. These bushes can operate at temperatures up to +300 deg C while also capable of cryogenic temperatures as low as -200 deg C. Also, these bushes provide outstanding resistance to chemicals and corrosion. Suitable for dry, wet or humid environments.
Benefits: Lubricated for life, greatly reduces the cost of maintenance, outstanding chemical and corrosion resistance
Equivalent: WMO253540
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 35mm
- Length:
- 40mm
- Item Type:
- Plain
Technical
Technical
| d | 25mm |
|---|---|
| D | 35mm |
| L | 40mm |
| PV | 3.3 max (N/mm? x m/s) |
| Static load | 100 max (N/mm?) |
| Sliding speed | 0.3 max (m/s) |
| Operating temperature | Up to 300 (?C) |
| Coefficient of thermal expansion | 19 x 10-5/?C |
| Coefficient of friction | 0.16 |
| Hardness | 210 min (HB) |
| Tensile strength | 750 min (N/mm?) |
| Elongation | 12 min (%) |
| Density | 8 (g/cm?) |
| Max rpm | 190.986 rpm |
| Max load | 10193.68 kg |
| Housing Tolerance | H7 |
