SKU: WMG35-SKF

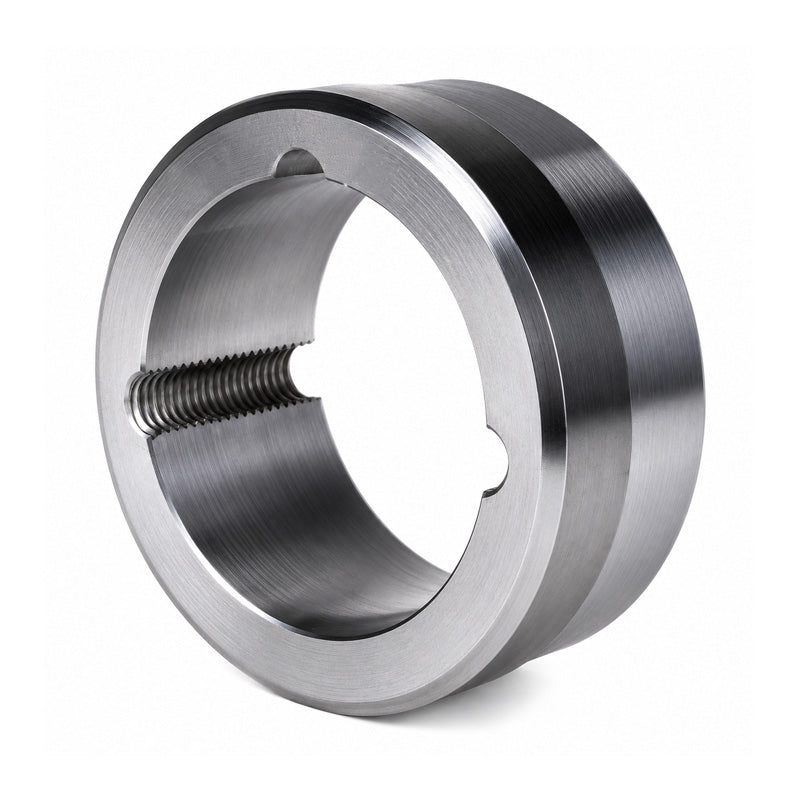

SKF WMG35 Weld on Hub Shaft Fixing with Tapered Bore
SKF WMG35 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
€102,88
ex VAT
Regular price
Sale price
€102,88
ex VAT
In stock
Price Break
10+
€91,56
19+
€86,42
29+
€85,39
39+
€84,36
49+
€83,33
74+
€82,30
99+
€77,16
199+
€76,13
249+
€75,10
499+
€74,07
999+
€72,02
Couldn't load pickup availability
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 3535
- Outside Diameter:
- 184mm
- Width:
- 89mm
Technical
Technical
| Hub Reference | WMG35 |
|---|---|
| Bush Number | 3535 |
| A | 184mm |
| B | 155mm |
| C | 151mm |
| D | 89mm |
| E | 32mm |
| F | 25mm |
| F1 | 30mm |
| X | 30mm |
