SKU: WMG30-3-SKF

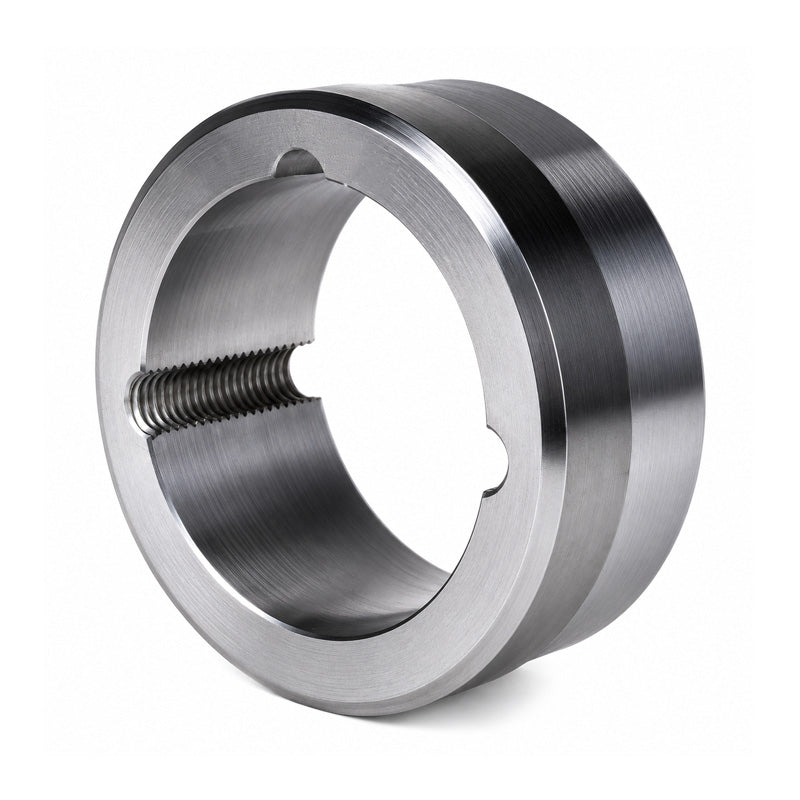

SKF WMG30-3 Weld on Hub Shaft Fixing with Tapered Bore
SKF WMG30-3 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
€66,09
ex VAT
Regular price
Sale price
€66,09
ex VAT
In stock
Price Break
10+
€58,82
19+
€55,52
29+
€54,85
39+
€54,19
49+
€53,53
74+
€52,87
99+
€49,57
199+
€48,91
249+
€48,25
499+
€47,58
999+
€46,26
Couldn't load pickup availability
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 3030
- Outside Diameter:
- 152mm
- Width:
- 76mm
Technical
Technical
| Hub Reference | WMG30-3 |
|---|---|
| Bush Number | 3030 |
| A | 152mm |
| B | 130mm |
| C | 125mm |
| D | 76mm |
| E | 25mm |
| F | 19mm |
| F1 | 25mm |
| X | 25mm |
