SKU: WMG20-MB

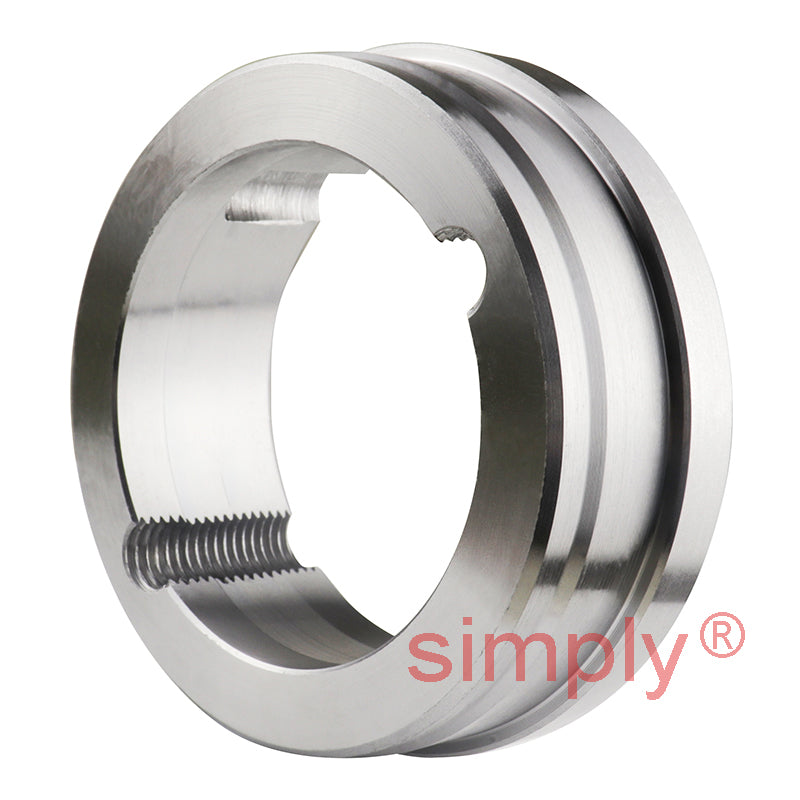

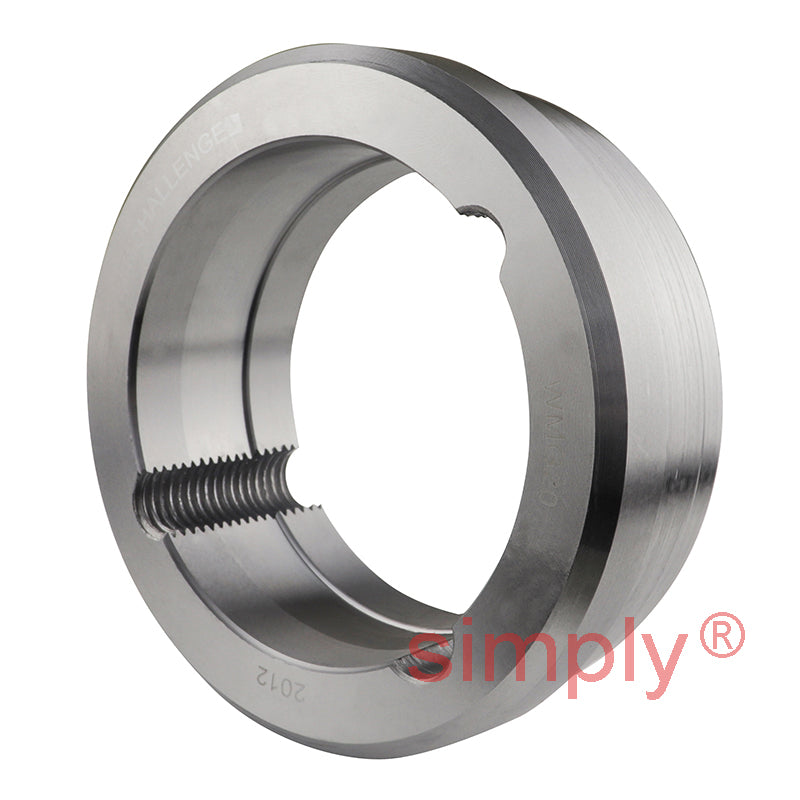

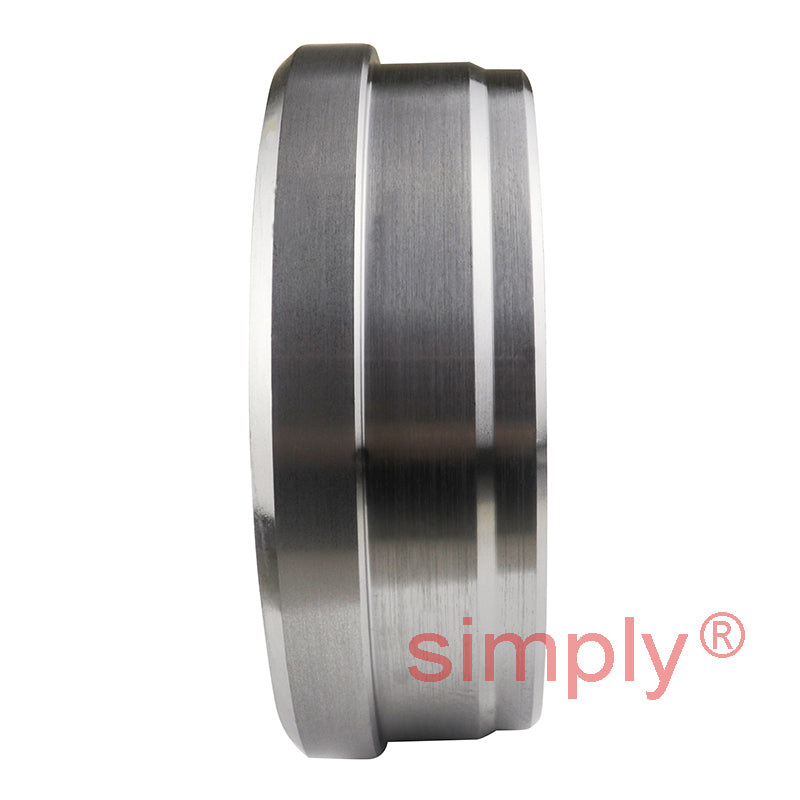

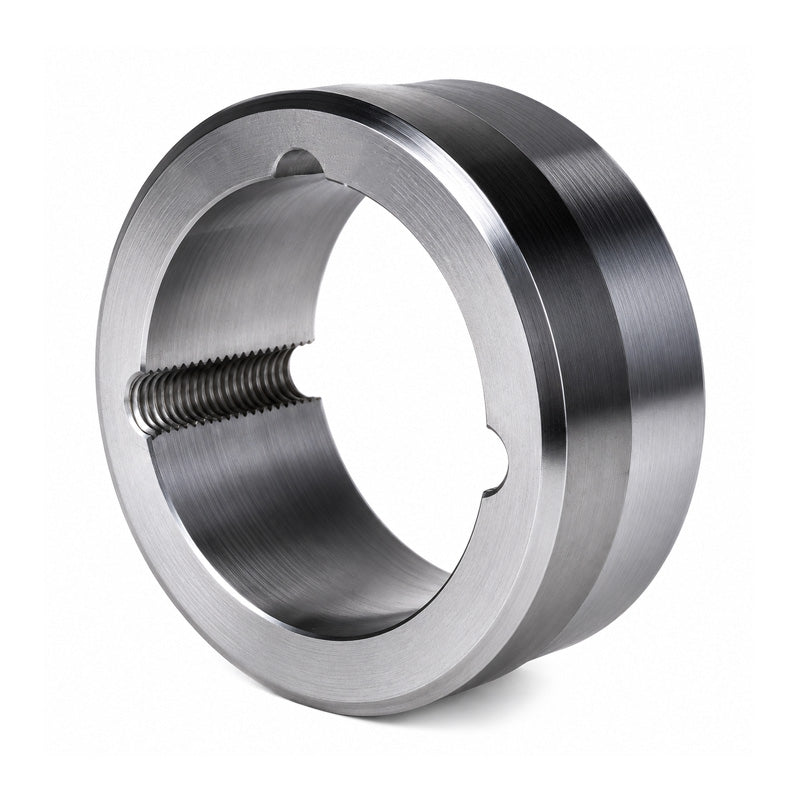

Major Brand WMG20 Weld on Hub Shaft Fixing with Tapered Bore
Major Brand WMG20 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
€23,04
ex VAT
Regular price
Sale price
€23,04
ex VAT
In stock
Price Break
10+
€20,51
19+
€19,35
29+
€19,12
39+
€18,89
49+
€18,66
74+
€18,43
99+
€17,28
199+
€17,05
249+
€16,82
499+
€16,59
999+
€16,13
Couldn't load pickup availability
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- Major Brand - High Quality
- Bush Size:
- 2012
- Outside Diameter:
- 95mm
- Width:
- 32mm
Technical
Technical
| Hub Reference | WMG20 |
|---|---|
| Bush Number | 2012 |
| A | 95mm |
| B | 90mm |
| C | 88mm |
| D | 32mm |
| E | 12mm |
| F | 12mm |
| F1 | 11mm |
| X | 11mm |
