SKU: WHG45-2-SKF

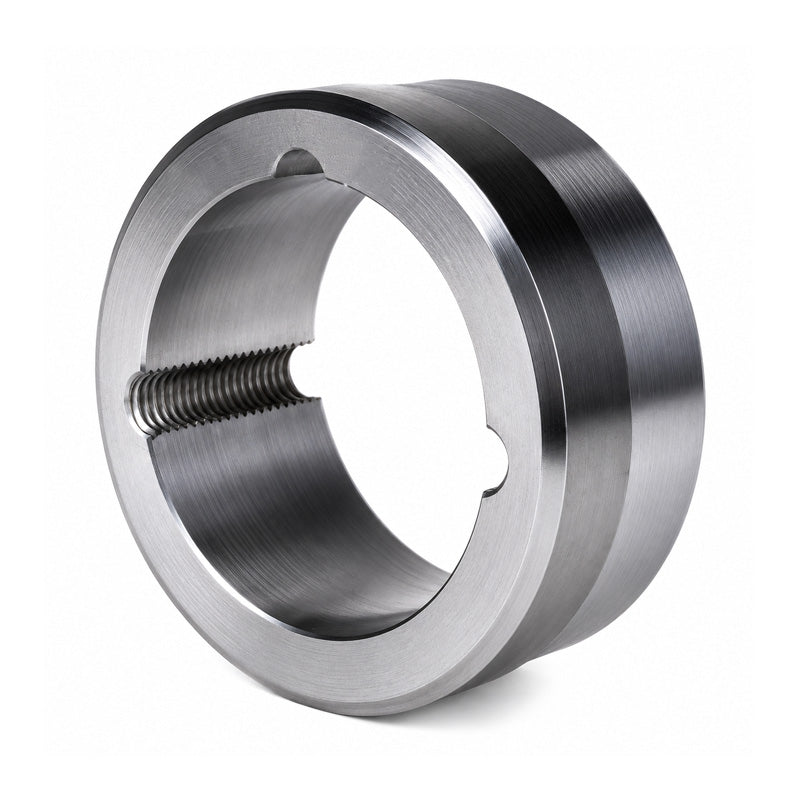

SKF WHG45-2 Weld on Hub Shaft Fixing with Tapered Bore
SKF WHG45-2 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
€156,80
ex VAT
Regular price
Sale price
€156,80
ex VAT
In stock
Price Break
10+
€139,55
19+
€131,71
29+
€130,14
39+
€128,58
49+
€127,01
74+
€125,44
99+
€117,60
199+
€116,03
249+
€114,46
499+
€112,90
999+
€109,76
Couldn't load pickup availability
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 4545
- Outside Diameter:
- 210mm
- Width:
- 114mm
Technical
Technical
| Hub Reference | WHG45-2 |
|---|---|
| Bush Number | 4545 |
| A | 210mm |
| B | 200mm |
| C | 199.5mm |
| D | 114mm |
| E | 40mm |
| F | 30mm |
| F1 | 38mm |
| X | 38mm |
