SKU: WHG30-2-SKF

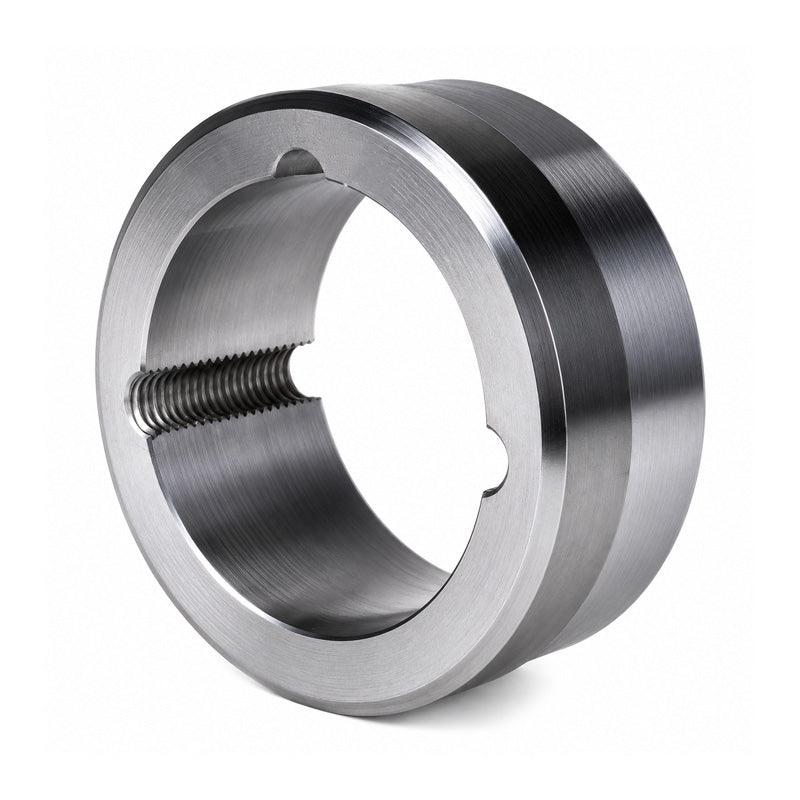

SKF WHG30-2 Weld on Hub Shaft Fixing with Tapered Bore
SKF WHG30-2 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
€50,58
ex VAT
Regular price
Sale price
€50,58
ex VAT
In stock
Price Break
10+
€45,02
19+
€42,49
29+
€41,98
39+
€41,48
49+
€40,97
74+
€40,46
99+
€37,94
199+
€37,43
249+
€36,92
499+
€36,42
999+
€35,41
Couldn't load pickup availability
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 3020
- Outside Diameter:
- 145mm
- Width:
- 50mm
Technical
Technical
| Hub Reference | WHG30-2 |
|---|---|
| Bush Number | 3020 |
| A | 145mm |
| B | 140mm |
| C | 139.5mm |
| D | 50mm |
| E | 20mm |
| F | 15mm |
| F1 | 17mm |
| X | 17mm |
