SKU: WG60-SKF

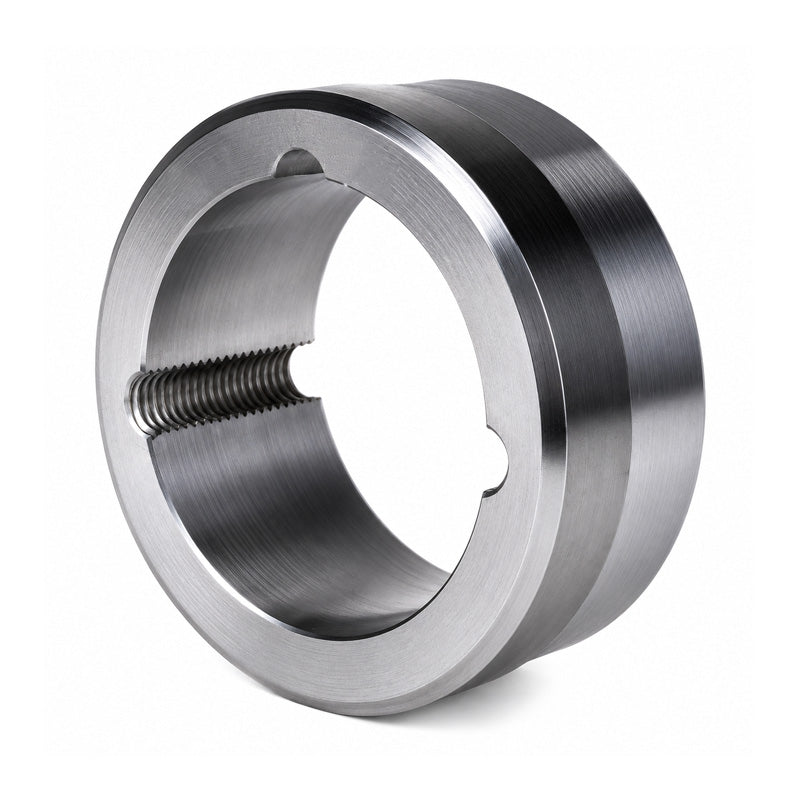

SKF WG60 Weld on Hub Shaft Fixing with Tapered Bore
SKF WG60 Weld on Hub Shaft Fixing with Tapered Bore
Regular price
€1.171,08
ex VAT
Regular price
Sale price
€1.171,08
ex VAT
In stock
Price Break
10+
€1.042,26
19+
€983,71
29+
€972,00
39+
€960,29
49+
€948,57
74+
€936,86
99+
€878,31
199+
€866,60
249+
€854,89
499+
€843,18
999+
€819,76
Couldn't load pickup availability
Description
Description
Weld-on-Hub Shaft Fixings: These Weld-on-Hubs are made from either Cast Iron or Steel. Also, they can be provided either drilled, tapped or taper bored to allow standard tapered bushes. The extended flange provides a convenient means of welding hubs into fan rotors, steel pulleys, plate sprockets, impellers, agitators and many other devices which must be firmly fastened to the shaft. We supply Weld-on-Hubs in many styles such as W, WH and WM.
- Brand / Quality:
- SKF - High Quality
- Bush Size:
- 10085
- Outside Diameter:
- 559mm
- Width:
- 216mm
Technical
Technical
| Hub Reference | WG100 |
|---|---|
| Bush Number | 10085 |
| A | 559mm |
| B | 495mm |
| C | 494mm |
| D | 216mm |
| E | 51mm |
| F | 51mm |
| F1 | 72mm |
| X | 72mm |
