SKU: W6801-2RS-W7-MB

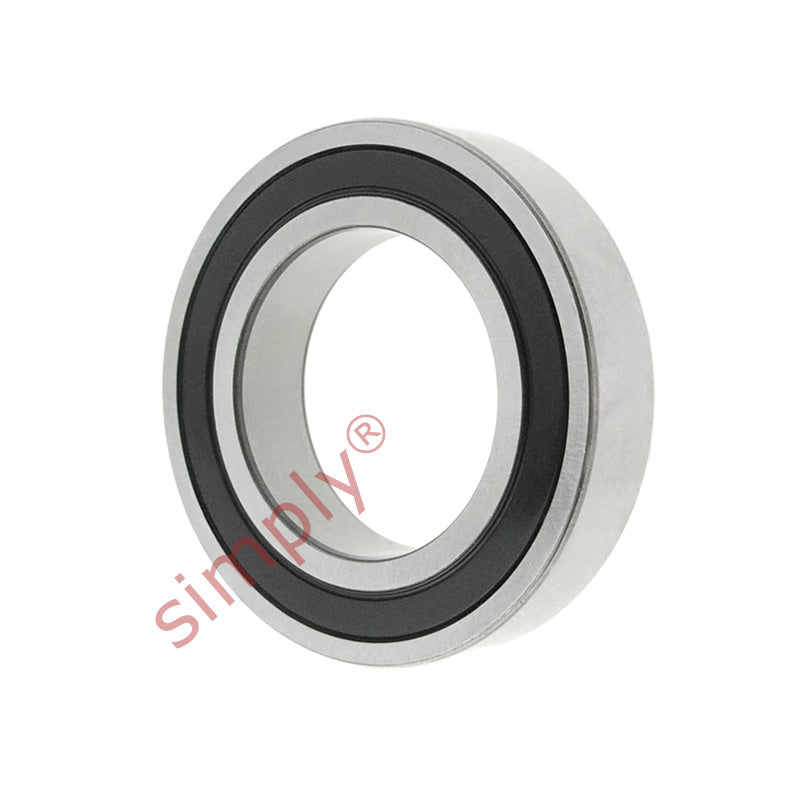

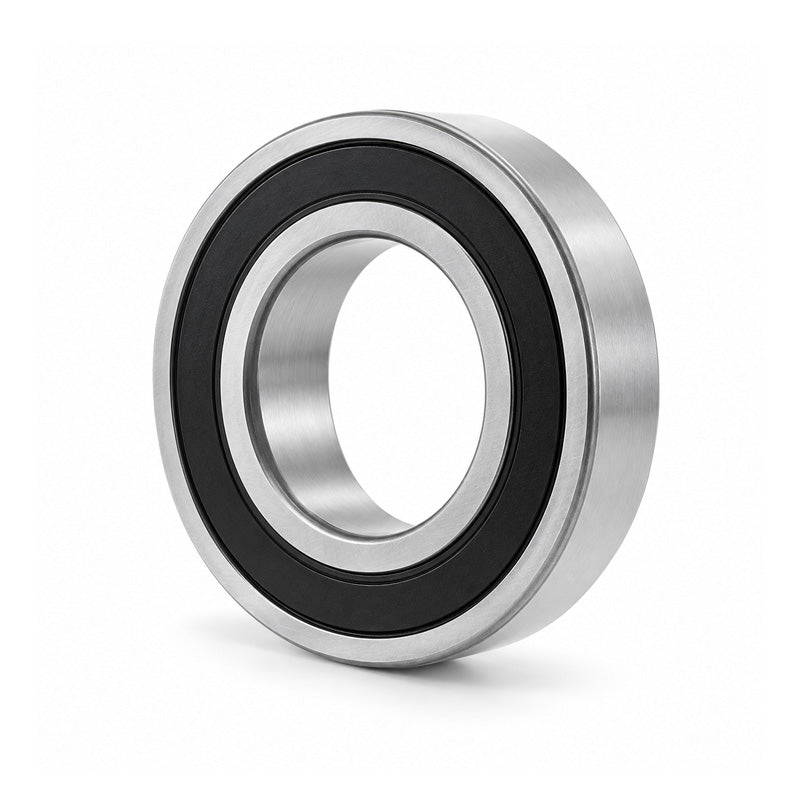

Major Brand W68012RSW7 Stainless Steel Rubber Sealed Thin Section Deep Groove Ball Bearing 12x21x7mm
Equivalent to: W6801NSEW7 W6801DUW7 W6801RSW7 W6801RSHW7 W6801PW7 W6801RSRW7 W6801LUW7 W68012NSEW7 W6801DDUW7 W68012RSW7 W68012RS1W7 W68012RSHW7 W6801PPW7 W6801LLUW7
In stock
Price Break
Share this product
Description
Stainless Steel Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these thin section types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: W6801NSEW7 W6801DUW7 W6801RSW7 W6801RSHW7 W6801PW7 W6801RSRW7 W6801LUW7 W68012NSEW7 W6801DDUW7 W68012RSW7 W68012RS1W7 W68012RSHW7 W6801PPW7 W6801LLUW7
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 21mm
- Width:
- 7mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| d | 12mm |
|---|---|
| D | 21mm |
| B | 7mm |
| Dynamic load C | 1.21 kN |
| Static load Co | 0.64 kN |
| Fatigue load limit Pu | 0.028 kN |
| Reference speed | 70000 rpm |
| Limiting speed | 43000 rpm |
| Mass | 0.063 kg |
| d1 | 14.8mm |
| D2 | 18.3mm |
| r1r2 min | 0.3mm |
| da min | 14 |
