SKU: UST211CC-SNR

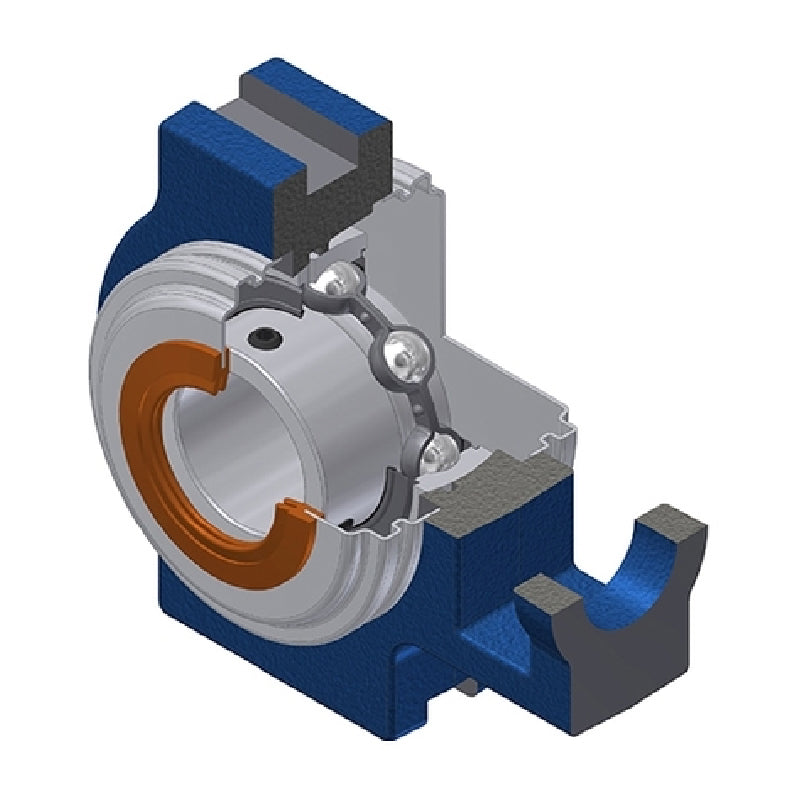

SNR UST211CC Metric Cast Iron Take Up Unit with 55mm Bore Bearing Unit with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR UST211CC Metric Cast Iron Take Up Unit with 55mm Bore Bearing Unit with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price €129,55 ex VAT
Regular price Sale price €129,55 ex VAT
Sale Sold out

In stock

Price Break
3+ €109,75
4+ €105,32
9+ €103,10
19+ €99,77
49+ €97,56
99+ €92,01
499+ €77,60
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 55mm
A 64mm
A1 22mm
A2 38mm
B 45.3mm
H 146mm
H1 130mm
H2 102mm
L 171mm
L1 106mm
L2 19mm
L3 95mm
N 35mm
N1 25mm
N2 64mm
S 11.8mm
Dz 110mm
Z 76.8mm
G M6x1
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 4.032 kg
