SKU: UST208CO-SNR

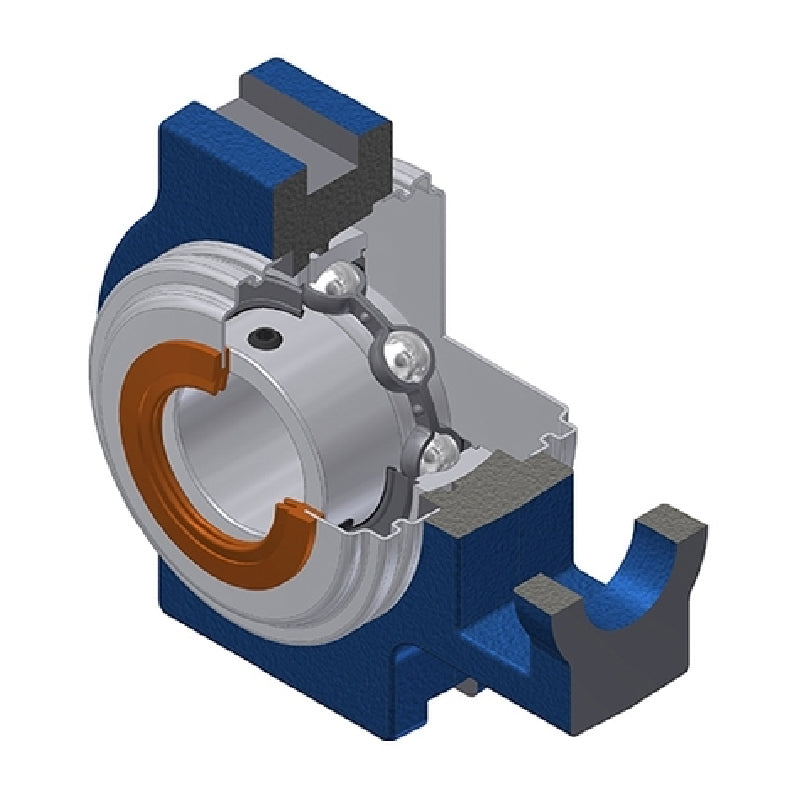

SNR UST208CO Metric Cast Iron Take Up Unit with 40mm Bore Bearing Unit with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days

SNR UST208CO Metric Cast Iron Take Up Unit with 40mm Bore Bearing Unit with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price €103,54 ex VAT
Regular price Sale price €103,54 ex VAT
Sale Sold out

In stock

Price Break
3+ €87,71
4+ €84,17
9+ €82,40
19+ €79,74
49+ €77,97
99+ €73,54
499+ €62,02
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 40mm
A 49mm
A1 16mm
A2 33mm
B 34mm
H 114mm
H1 102mm
H2 83mm
L 144mm
L1 88mm
L2 16mm
L3 83mm
N 29mm
N1 19mm
N2 49mm
S 9mm
Dz 88mm
Z 68.6mm
G M6x1
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 2.444 kg
