SKU: USPG208CO-SNR

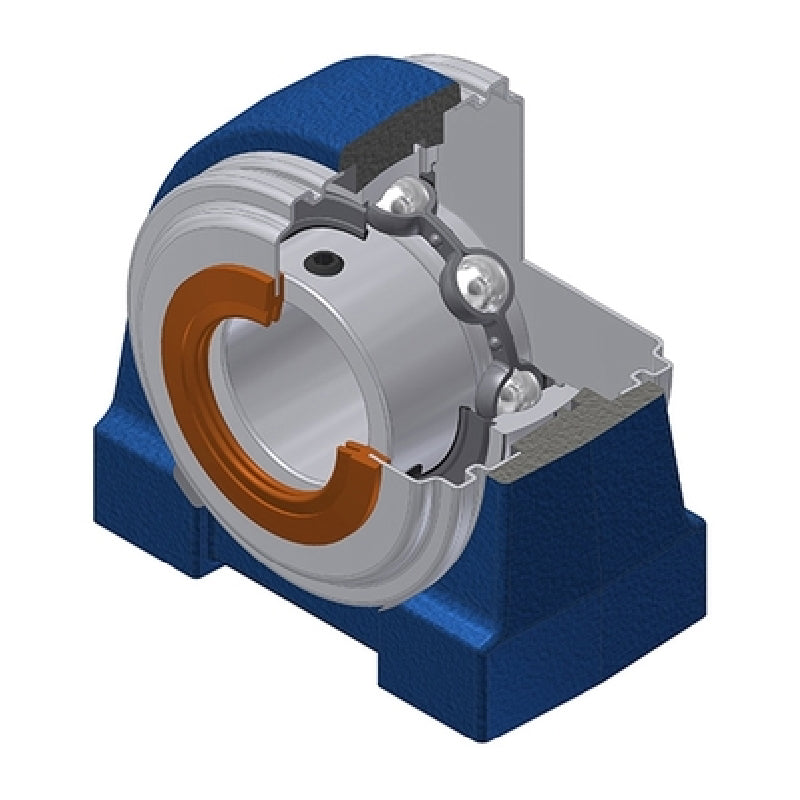

SNR USPG208CO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 40mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
SNR USPG208CO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with 40mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price
€103,58
ex VAT
Regular price
Sale price
€103,58
ex VAT
In stock
Price Break
3+
€87,75
4+
€84,21
9+
€82,44
19+
€79,78
49+
€78,00
99+
€73,57
499+
€62,05
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
USPG200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- USPG
- Bolt Hole Centres:
- 78mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 40mm |
| A | 54mm |
| A1 | 30mm |
| B | 34mm |
| E | 22mm |
| H | 49.2mm |
| H1 | 20mm |
| H2 | 98mm |
| J | 78mm |
| L | 110mm |
| L1 | 35mm |
| N | M12 |
| S | 9mm |
| Dz | 88mm |
| Z | 69.3mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.844 kg |
