SKU: USFTE208-SNR

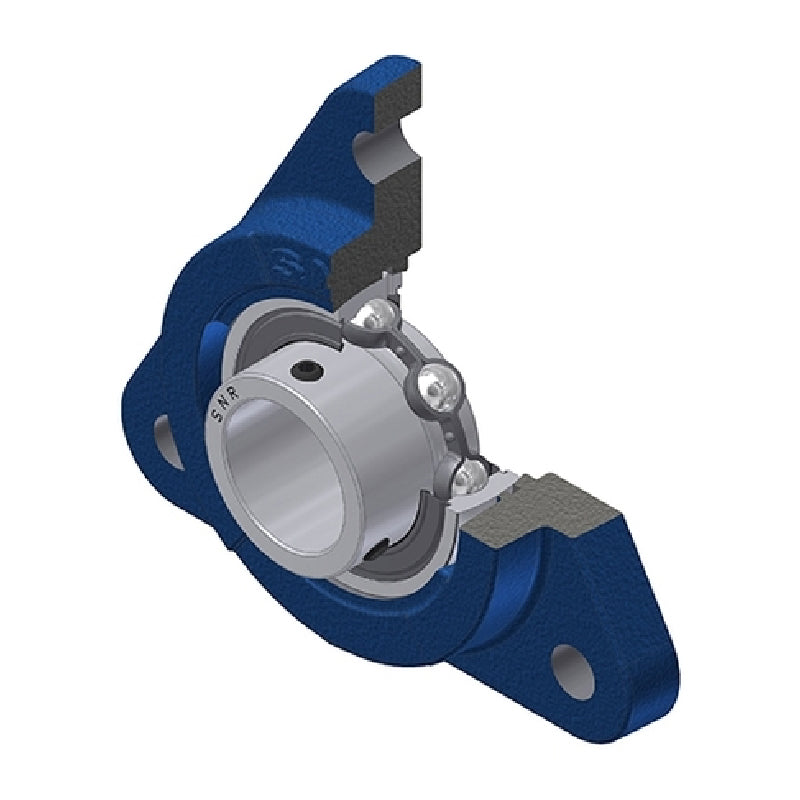

SNR USFTE208 Metric Three Bolt Cast Iron Triangular Housing with 40mm Bore Insert
SNR USFTE208 Metric Three Bolt Cast Iron Triangular Housing with 40mm Bore Insert
Regular price
€45,12
ex VAT
Regular price
Sale price
€45,12
ex VAT
In stock
Price Break
10+
€40,16
19+
€37,90
29+
€37,45
39+
€37,00
49+
€36,55
74+
€36,10
99+
€33,84
199+
€33,39
249+
€32,94
499+
€32,49
999+
€31,58
Couldn't load pickup availability
Description
Description
USFTE200 Series 3 Bolt Cast Iron Triangular Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- USFTE
- Bolt Hole Centres:
- 140mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 40mm |
| A | 30mm |
| A1 | 16mm |
| A2 | 43.8mm |
| B | 34mm |
| e | 18.8mm |
| H | 153mm |
| H1 | 51mm |
| J | 140mm |
| N | 13.5mm |
| S | 9mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 2.29 kg |
