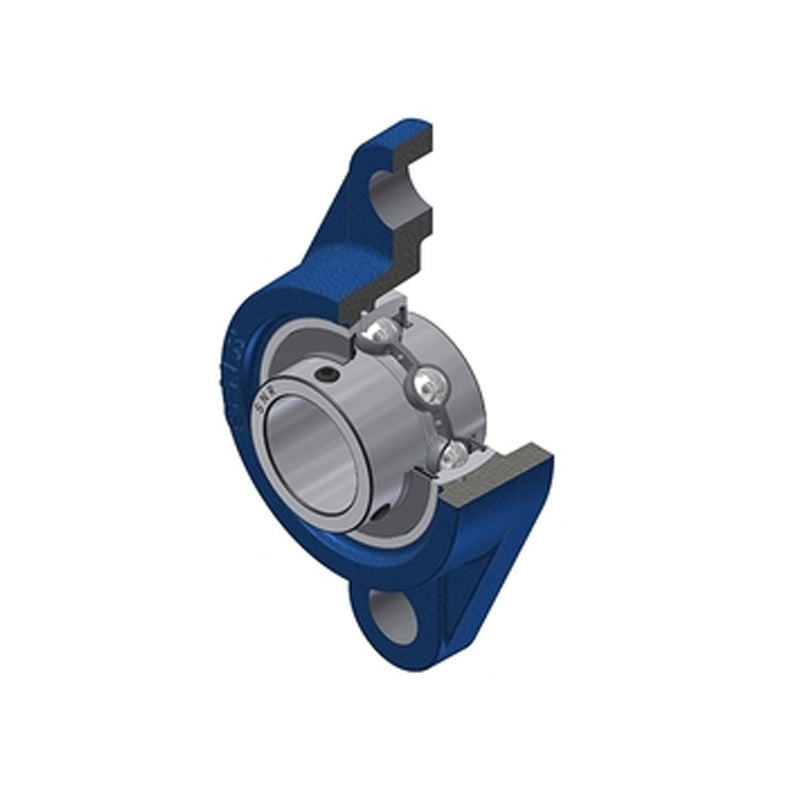

SNR USFL211 Metric Two Bolt Oval Cast Iron Flange Housing with 55mm Bore Insert - Allow 2-3 Days
SNR USFL211 Metric Two Bolt Oval Cast Iron Flange Housing with 55mm Bore Insert - Allow 2-3 Days
Regular price
€77,68
ex VAT
Regular price
Sale price
€77,68
ex VAT
In stock
Price Break
3+
€65,81
4+
€63,15
9+
€61,82
19+
€59,82
49+
€58,49
99+
€55,17
499+
€46,53
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Share this product
Description
Description
USFL200 Series 2 Bolt Cast Iron Oval Flange Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55mm
- Style:
- USFL
- Bolt Hole Centres:
- 184mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 55mm |
| A | 43mm |
| A1 | 18mm |
| A2 | 58.5mm |
| B | 45.3mm |
| e | 25mm |
| H | 224mm |
| J | 184mm |
| L | 130mm |
| N | 19mm |
| S | 11.8mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 2.92 kg |
