SKU: USFA203CO-SNR

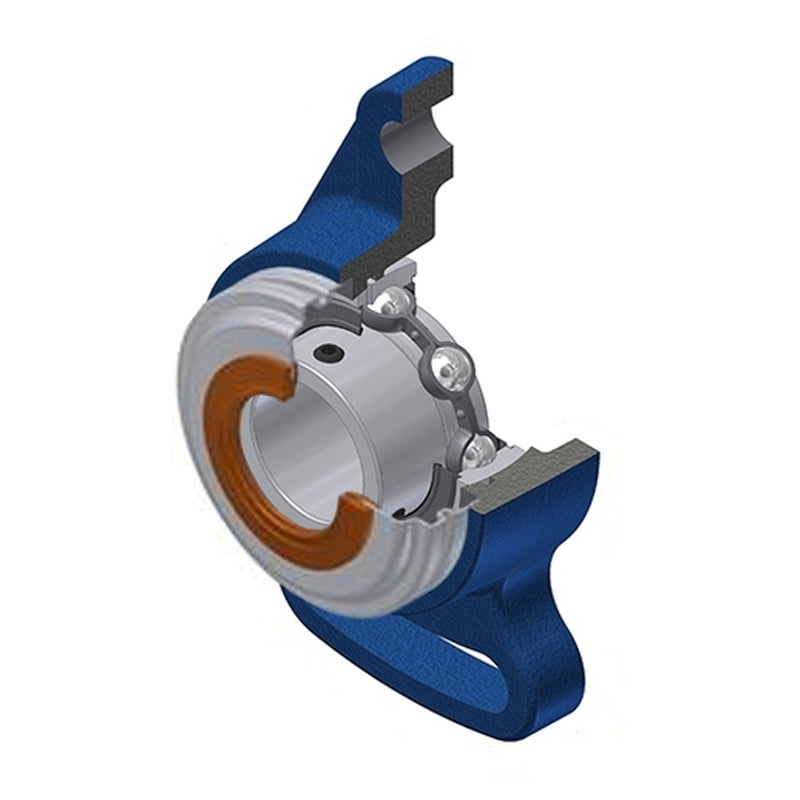

SNR USFA203CO Metric Cast Iron Adjustable Flange Unit with 17mm Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days

SNR USFA203CO Metric Cast Iron Adjustable Flange Unit with 17mm Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price €64,70 ex VAT
Regular price Sale price €64,70 ex VAT
Sale Sold out

In stock

Price Break
3+ €54,82
4+ €52,60
9+ €51,49
19+ €49,83
49+ €48,73
99+ €45,96
499+ €38,76
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 17mm
A 25.5mm
A1 12mm
A2 31mm
B 22mm
e 15mm
H 102mm
J 78mm
J1 40mm
L 60mm
L1 54mm
N 10mm
S 6mm
Dz 46mm
Z 34.8mm
G M6x1
--- Load rating
Dynamic load C 9.55 kN
Static load C0 4.78 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 3.5 Nm
Mass 0.323 kg
