SKU: USF206-18-SNR

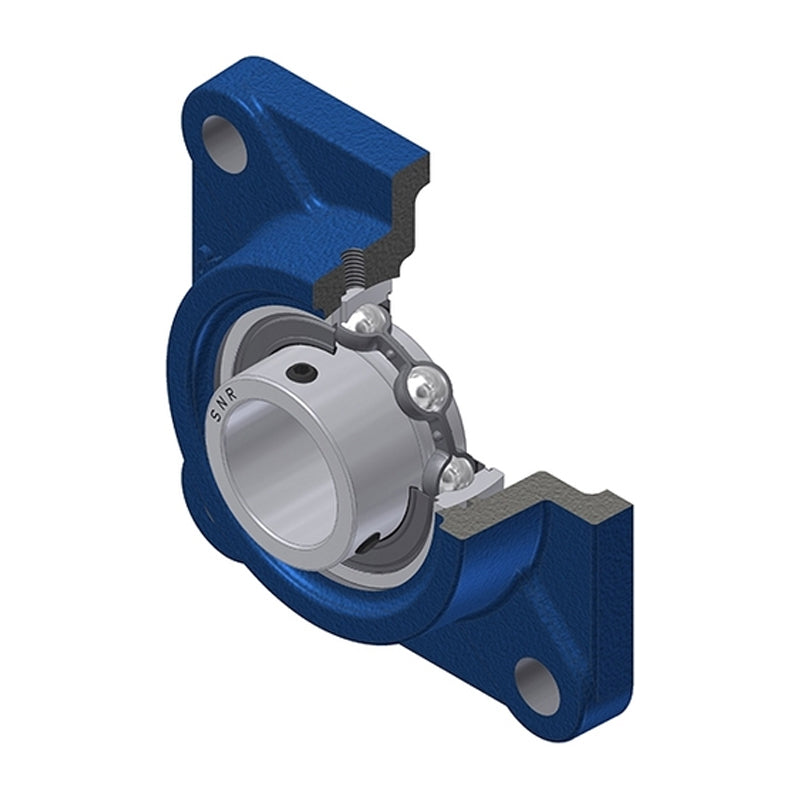

SNR USF206-18 Imperial Four Bolt Square Cast Iron Flange Housing with 1-1/8 inch Bore Insert - Allow 2-3 Days
SNR USF206-18 Imperial Four Bolt Square Cast Iron Flange Housing with 1-1/8 inch Bore Insert - Allow 2-3 Days
Regular price
€31,07
ex VAT
Regular price
Sale price
€31,07
ex VAT
In stock
Price Break
3+
€26,32
4+
€25,26
9+
€24,73
19+
€23,93
49+
€23,40
99+
€22,07
499+
€18,61
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Style:
- USF
- Bolt Hole Centres:
- 83mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 1-1/8 inch |
| A | 31mm |
| A1 | 13mm |
| A2 | 40mm |
| B | 30mm |
| e | 18mm |
| J | 83mm |
| L | 108mm |
| N | 12mm |
| S | 8mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 19.5 kN |
| Static load C0 | 11.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 3.7 Nm |
| Mass | 1.07 kg |
