SKU: UKT315H-SNR

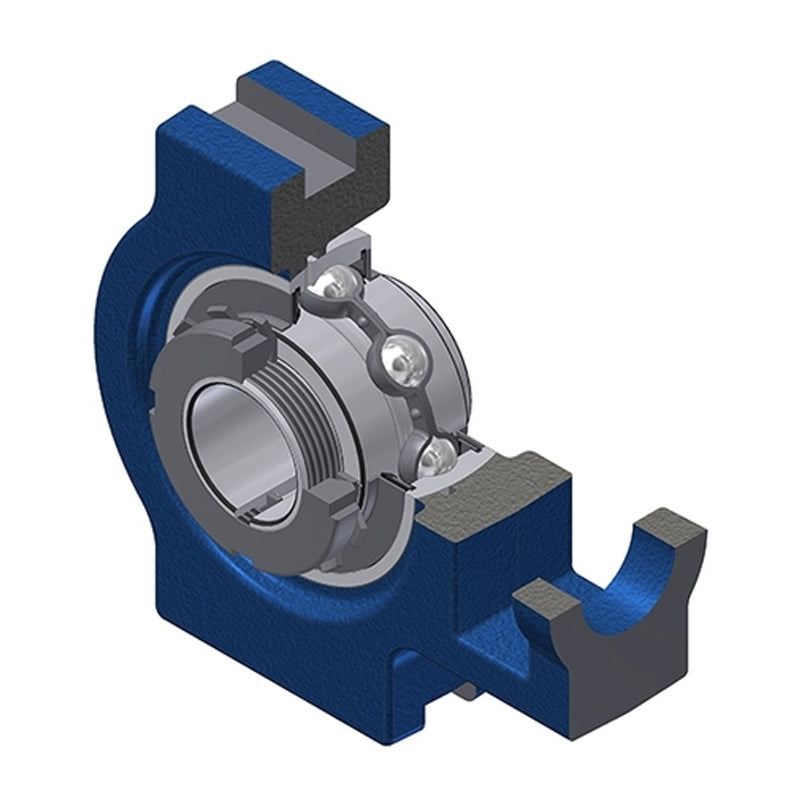

SNR UKT315H Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 65mm Shaft - Allow 2-3 Days
SNR UKT315H Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 65mm Shaft - Allow 2-3 Days
Regular price
€453,11
ex VAT
Regular price
Sale price
€453,11
ex VAT
In stock
Price Break
3+
€383,86
4+
€368,35
9+
€360,60
19+
€348,97
49+
€341,21
99+
€321,82
499+
€271,42
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Share this product
Description
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 65mm
- Style:
- UKT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 65mm |
| A | 90mm |
| A1 | 26mm |
| A2 | 55mm |
| B1 | 73mm |
| d1 | 98mm |
| H | 216mm |
| H1 | 192mm |
| H2 | 132mm |
| L | 262mm |
| L1 | 160mm |
| L2 | 27mm |
| L3 | 150mm |
| N | 46mm |
| N1 | 36mm |
| N2 | 85mm |
| s1 | 42.5mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 113.36 kN |
| Static load C0 | 76.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adapter sleeve | H2315 |
| Mass | 12.91 kg |
