SKU: UKT213HCO-SNR

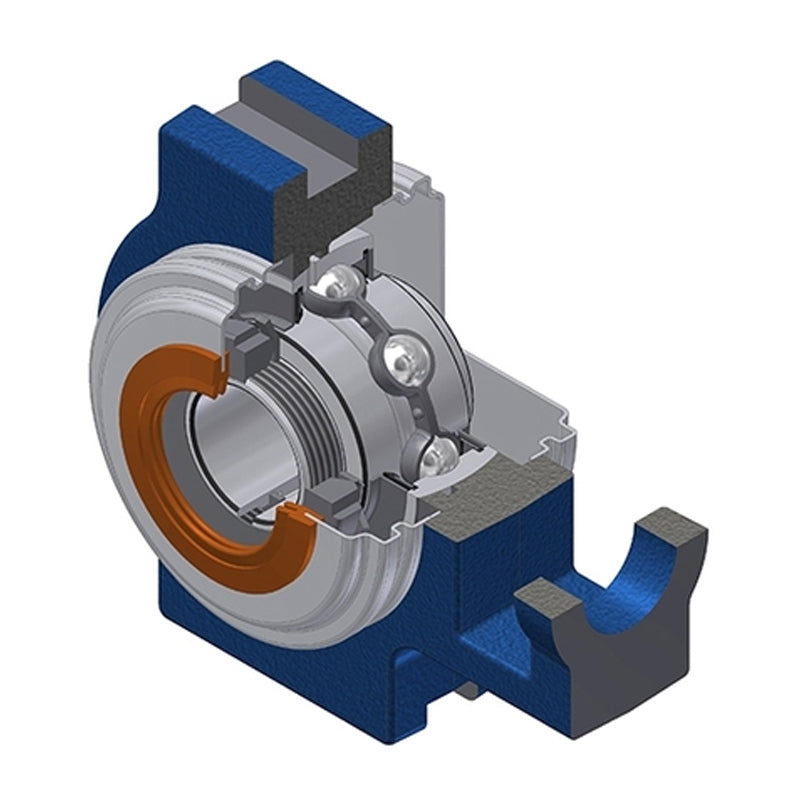

SNR UKT213HCO Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 60mm Shaft - Open Version - Allow 2-3 Days

SNR UKT213HCO Metric Cast Iron Take Up Unit Insert with Narrow Steel Plate Cover and Adaptor Sleeve Fits 60mm Shaft - Open Version - Allow 2-3 Days
Regular price €152,07 ex VAT
Regular price Sale price €152,07 ex VAT
Sale Sold out

In stock

Price Break
3+ €115,82
4+ €109,31
9+ €108,01
19+ €106,71
49+ €105,41
99+ €104,11
499+ €97,60
999+ €96,30
1999+ €95,00
2999+ €93,69
4999+ €91,09
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 60mm
A 70mm
A1 26mm
A2 44mm
B1 65mm
d1 85mm
H 167mm
H1 151mm
H2 111mm
L 224mm
L1 137mm
L2 21mm
L3 121mm
N 41mm
N1 32mm
N2 70mm
Dz 132mm
Z 90.6mm
G M6x1
--- Load rating
Dynamic load C 57.2 kN
Static load C0 40 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Adapter sleeve H2313
Mass 7.035 kg
