SKU: UKSP209HCC-SNR

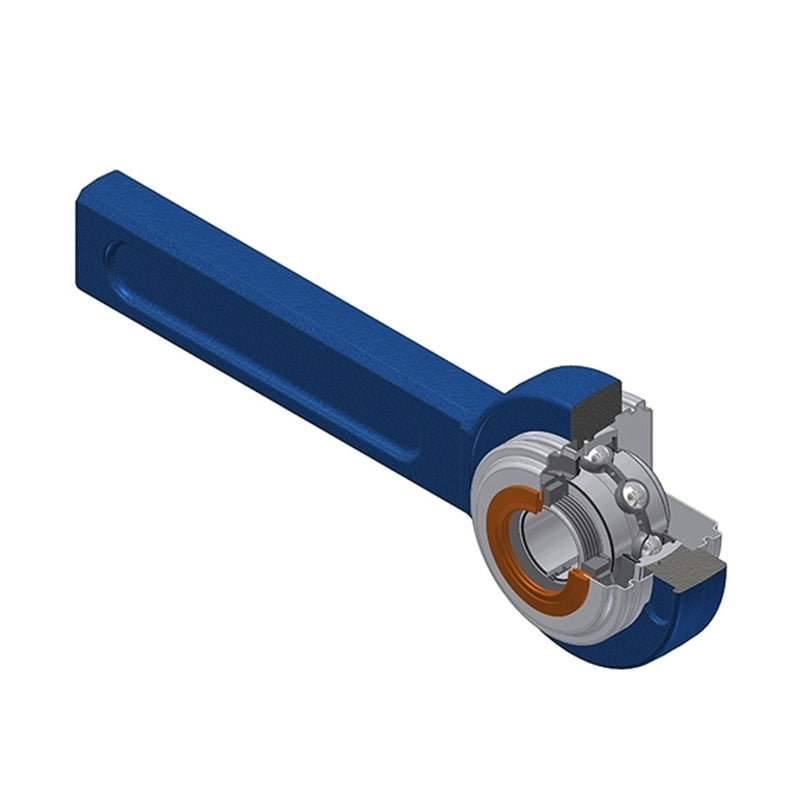

SNR UKSP209HCC Metric Cast Iron Tensioner Unit with Narrow Steel Plate Cover - Closed Version - with Insert and Adaptor Sleeve Fits 40mm Shaft - Allow 2-3 Days

SNR UKSP209HCC Metric Cast Iron Tensioner Unit with Narrow Steel Plate Cover - Closed Version - with Insert and Adaptor Sleeve Fits 40mm Shaft - Allow 2-3 Days
Regular price €207,13 ex VAT
Regular price Sale price €207,13 ex VAT
Sale Sold out

In stock

Price Break
3+ €175,48
4+ €168,39
9+ €164,84
19+ €159,53
49+ €155,98
99+ €147,12
499+ €124,08
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

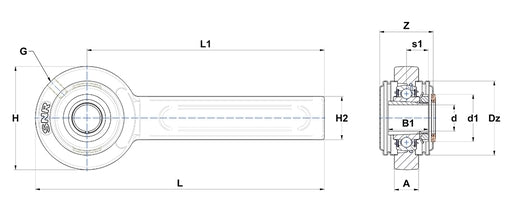

--- Dimensions
Shaft diameter 40mm
A 31mm
B1 50mm
d1 65mm
H 120mm
H2 61mm
L 320mm
L1 260mm
Dz 95mm
Z 69.3mm
G R1/8″
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Stretcher frame 2 SPR21
Stretcher frame 3 SPR22
Stretcher frame 4 SPR24
Adaptor sleeve H2309
Mass 4.071 kg
