SKU: UKSP207HCC-SNR

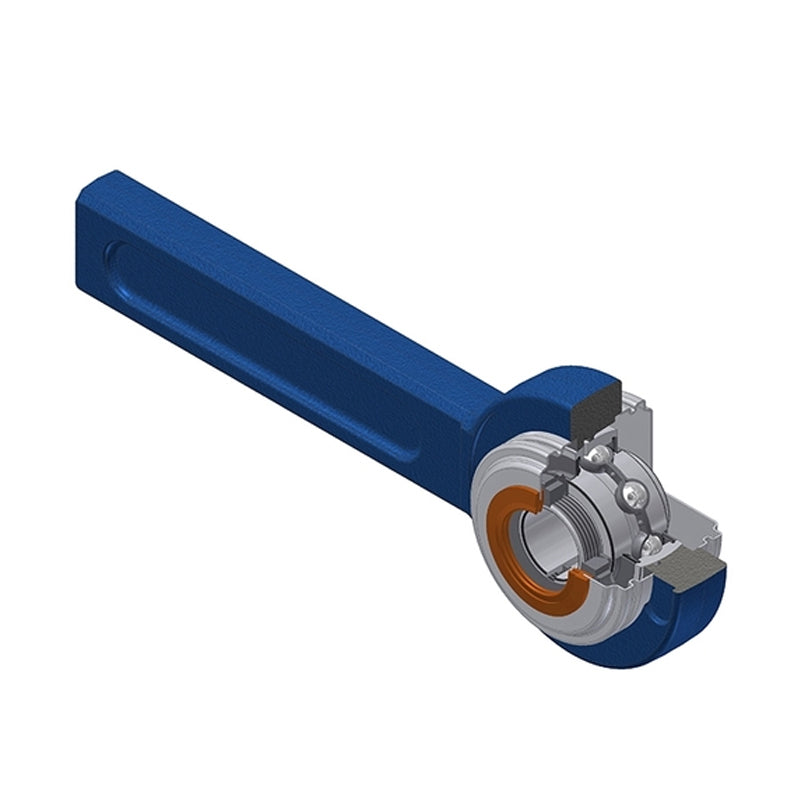

SNR UKSP207HCC Metric Cast Iron Tensioner Unit with Narrow Steel Plate Cover - Closed Version - with Insert and Adaptor Sleeve Fits 30mm Shaft - Allow 2-3 Days

SNR UKSP207HCC Metric Cast Iron Tensioner Unit with Narrow Steel Plate Cover - Closed Version - with Insert and Adaptor Sleeve Fits 30mm Shaft - Allow 2-3 Days
Regular price €155,26 ex VAT
Regular price Sale price €155,26 ex VAT
Sale Sold out

In stock

Price Break
3+ €131,53
4+ €126,22
9+ €123,56
19+ €119,57
49+ €116,92
99+ €110,27
499+ €93,00
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 30mm
A 21mm
B1 43mm
d1 52mm
H 98mm
H2 41mm
L 274mm
L1 225mm
Dz 80mm
Z 54.4mm
G R1/8″
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Stretcher frame 2 SPR11
Stretcher frame 3 SPR12
Stretcher frame 4 SPR14
Adaptor sleeve H2307
Mass 2.06 kg
