SKU: UKPH209HN-SNR

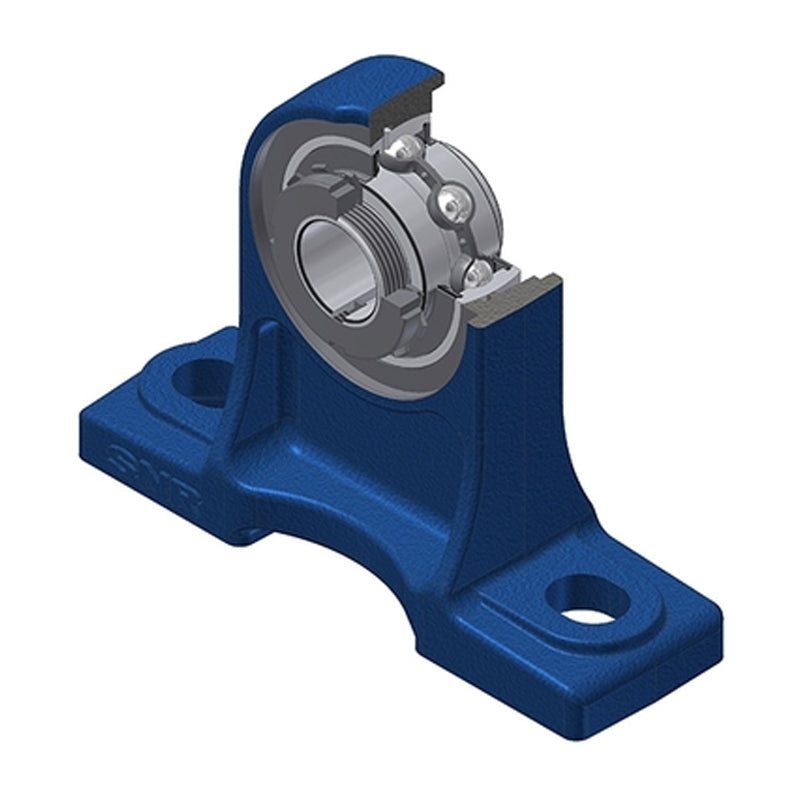

SNR UKPH209HN Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing Insert and Adaptor Sleeve Fits 40mm Shaft - Allow 2-3 Days

SNR UKPH209HN Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing Insert and Adaptor Sleeve Fits 40mm Shaft - Allow 2-3 Days
Regular price €103,56 ex VAT
Regular price Sale price €103,56 ex VAT
Sale Sold out

In stock

Price Break
3+ €87,73
4+ €84,19
9+ €82,42
19+ €79,76
49+ €77,99
99+ €73,55
499+ €62,03
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

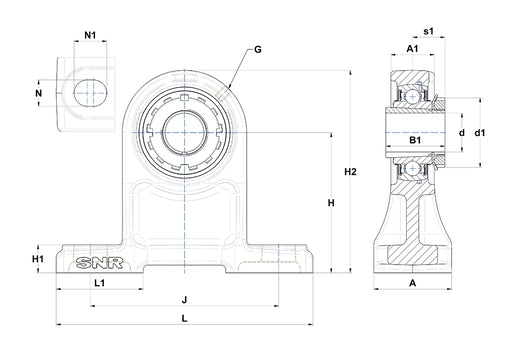

--- Dimensions
Shaft diameter 40mm
A 70mm
A1 36mm
B 30mm
d1 65mm
H 105mm
H1 20mm
H2 157mm
J 146mm
L 190mm
L1 62mm
N 17mm
N1 25mm
s1 26mm
G M6x1
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Adaptor Sleeve H2309
Mass 3.2 kg
