SKU: UKPAE211HCO-SNR

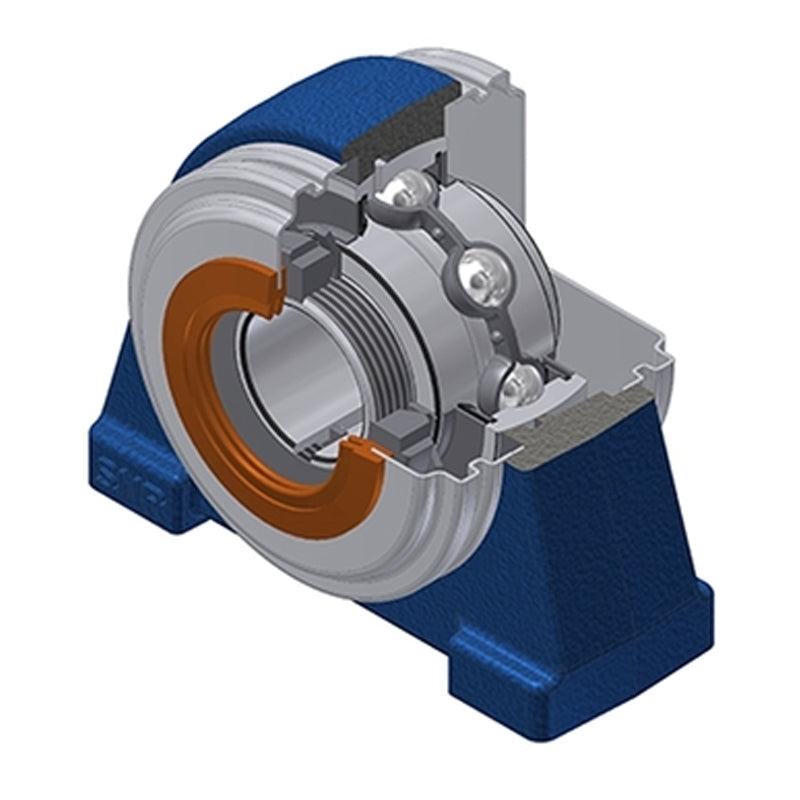

SNR UKPAE211HCO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Narrow Steel Plate Cover - Open Version - Insert and Adaptor Sleeve Fits 50mm Shaft - Allow 2-3 Days
SNR UKPAE211HCO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Narrow Steel Plate Cover - Open Version - Insert and Adaptor Sleeve Fits 50mm Shaft - Allow 2-3 Days
Regular price
€129,55
ex VAT
Regular price
Sale price
€129,55
ex VAT
In stock
Price Break
3+
€109,75
4+
€105,32
9+
€103,10
19+
€99,77
49+
€97,56
99+
€92,01
499+
€77,60
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UKPA/UKPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- UKPAE
- Bolt Hole Centres:
- 118mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 50mm |
| A | 60mm |
| A1 | 35mm |
| B | 33mm |
| d1 | 75mm |
| E | 20mm |
| H | 64mm |
| H1 | 16mm |
| H2 | 125mm |
| J | 118mm |
| L | 150mm |
| L1 | 32mm |
| N | M16 |
| Dz | 110mm |
| Z | 77.7mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Adaptor sleeve | H2311 |
| Mass | 3.358 kg |
