SKU: UKC318H-SNR
SNR UKC318H Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 80mm Bore Insert 66mm Outside Dia - Allow 2-3 Days
SNR UKC318H Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 80mm Bore Insert 66mm Outside Dia - Allow 2-3 Days
Regular price
€647,45
ex VAT
Regular price
Sale price
€647,45
ex VAT
In stock
Price Break
3+
€548,50
4+
€526,34
9+
€515,26
19+
€498,64
49+
€487,56
99+
€459,85
499+
€387,83
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Share this product
Description
Description

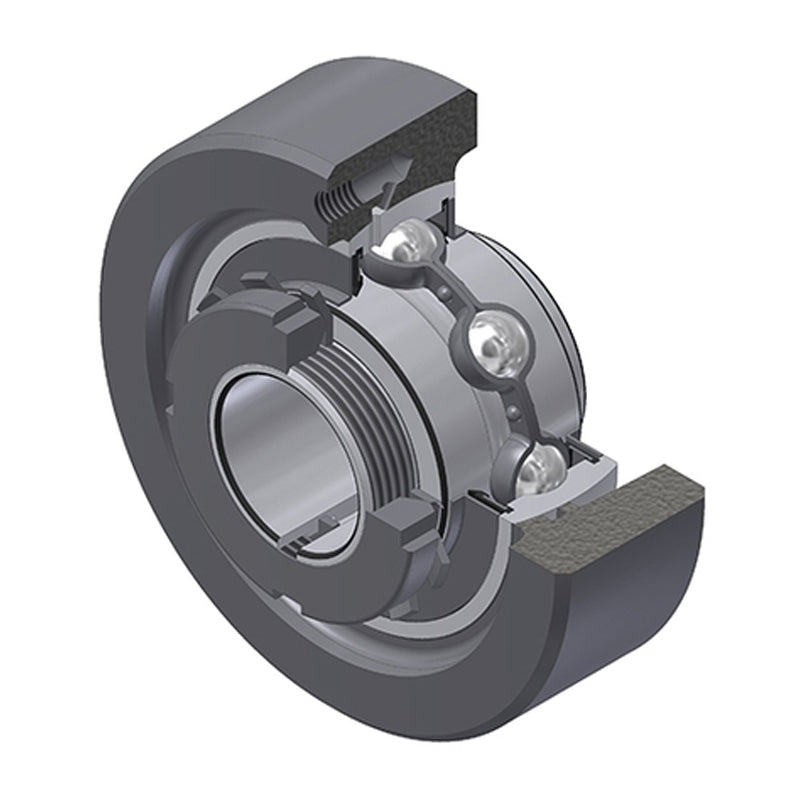

UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 80mm
- Style:
- UKC
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 80mm |
| A | 66mm |
| A3 | 3mm |
| B1 | 86mm |
| d1 | 120mm |
| H | 225mm |
| s1 | 48mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 143 kN |
| Static load C0 | 108 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 12.71 kg |
