SKU: UKC310H-SNR

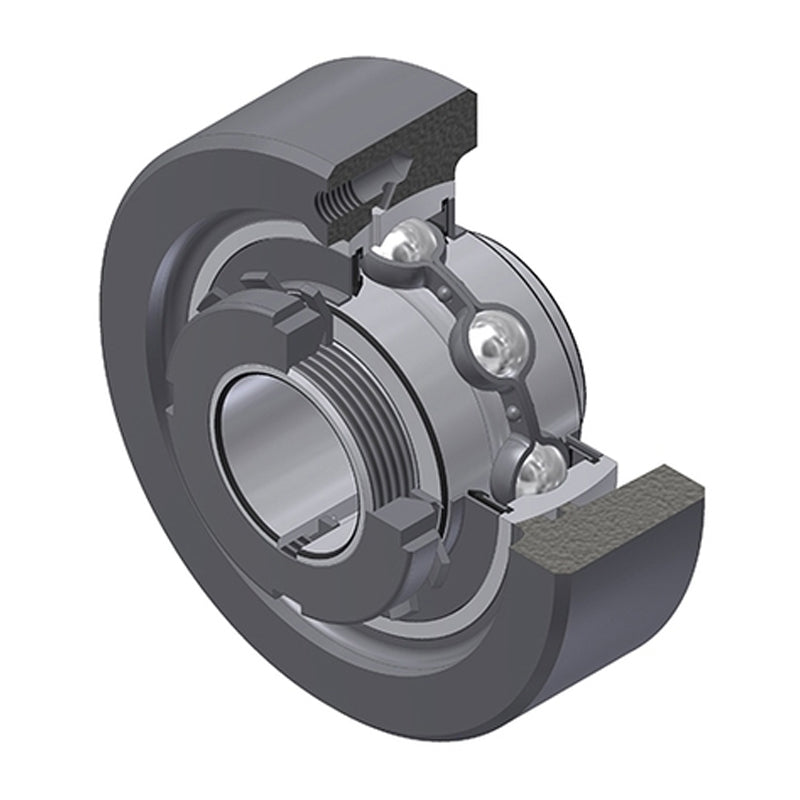

SNR UKC310H Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 45mm Bore Insert 40mm Outside Dia - Allow 2-3 Days

SNR UKC310H Metric Cast Iron Cartridge Unit with Adaptor Sleeve Mounted and 45mm Bore Insert 40mm Outside Dia - Allow 2-3 Days
Regular price €181,27 ex VAT
Regular price Sale price €181,27 ex VAT
Sale Sold out

In stock

Price Break
3+ €153,57
4+ €147,36
9+ €144,26
19+ €139,61
49+ €136,51
99+ €128,75
499+ €108,58
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter d 45mm
A 40mm
A3 2.5mm
B1 55mm
d1 70mm
H 140mm
s1 32mm
G M6x1
--- Load rating
Dynamic load C 62 kN
Static load C0 37.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Mass 3.39 kg
