SKU: UKC210/HS2310

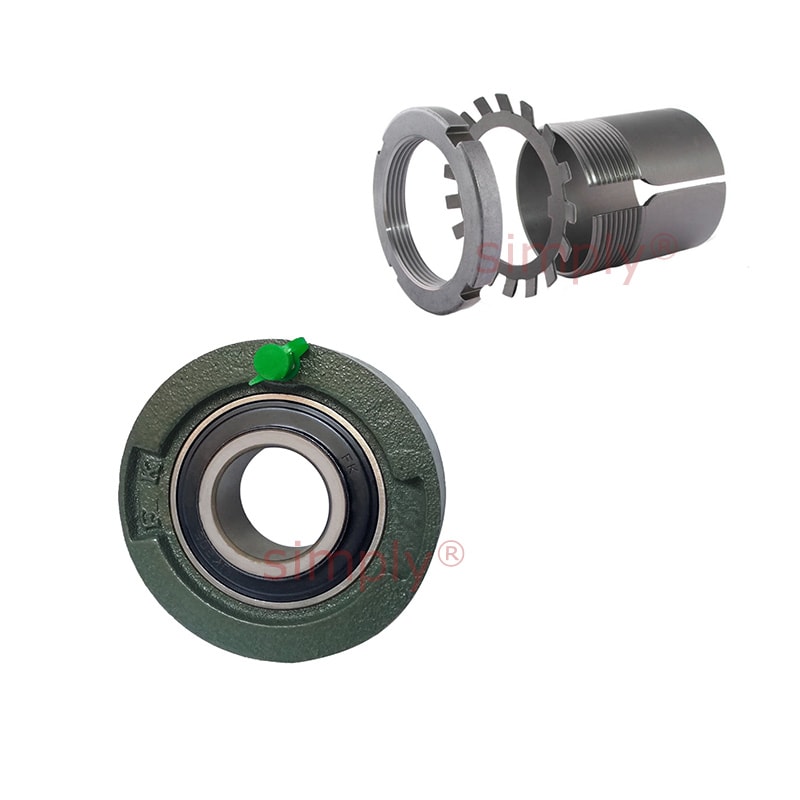

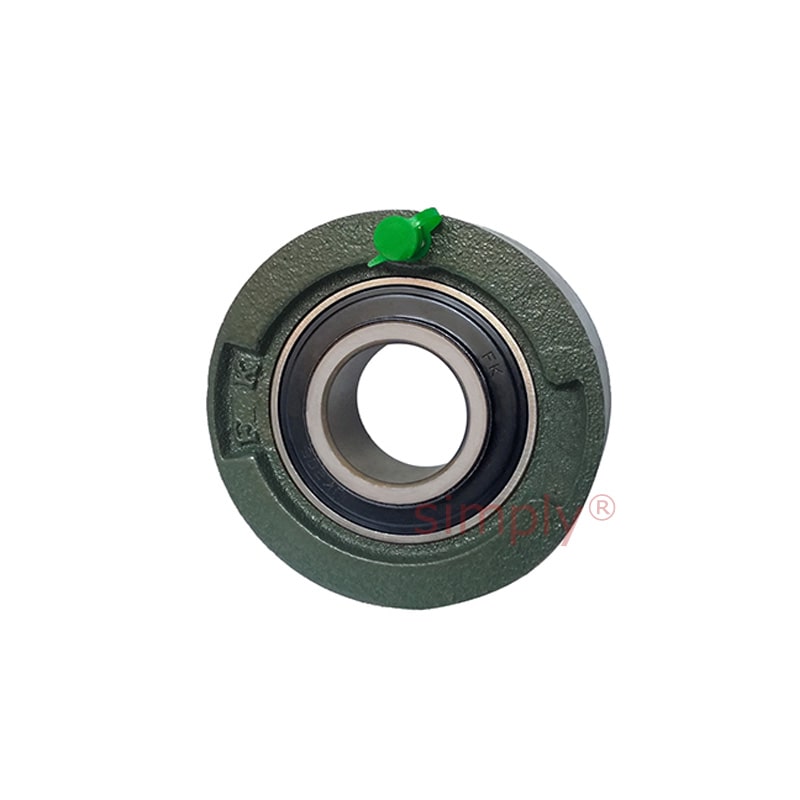

Budget UKC210/HS2310 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 1-5/8 inch Bore Insert 4.7244 inch Outside Dia
Budget UKC210/HS2310 Imperial Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 1-5/8 inch Bore Insert 4.7244 inch Outside Dia
Regular price
€95,80
ex VAT
Regular price
Sale price
€95,80
ex VAT
In stock
Price Break
10+
€85,26
19+
€80,47
29+
€79,51
39+
€78,56
49+
€77,60
74+
€76,64
99+
€71,85
199+
€70,89
249+
€69,93
499+
€68,98
999+
€67,06
Couldn't load pickup availability
Description
Description
UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Outside Diameter:
- 120mm = 4.7244 inch
- Style:
- UKC
Technical
Technical
| Bore d | 1-5/8 inch |
|---|---|
| Outer Dia a | 4.7244 inch |
| g | 1-19/64 inch |
| r | 0.098 inch |
| B | 2.165 inch |
| Bearing No | UK210;HS2310 |
| Housing No | C210 |
