SKU: UKC208/H2308

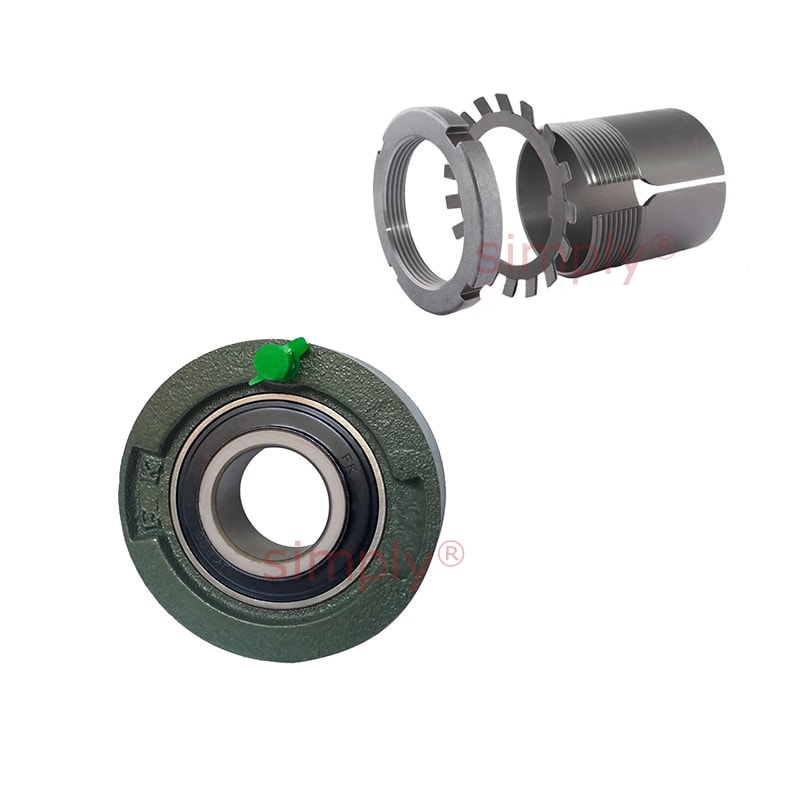

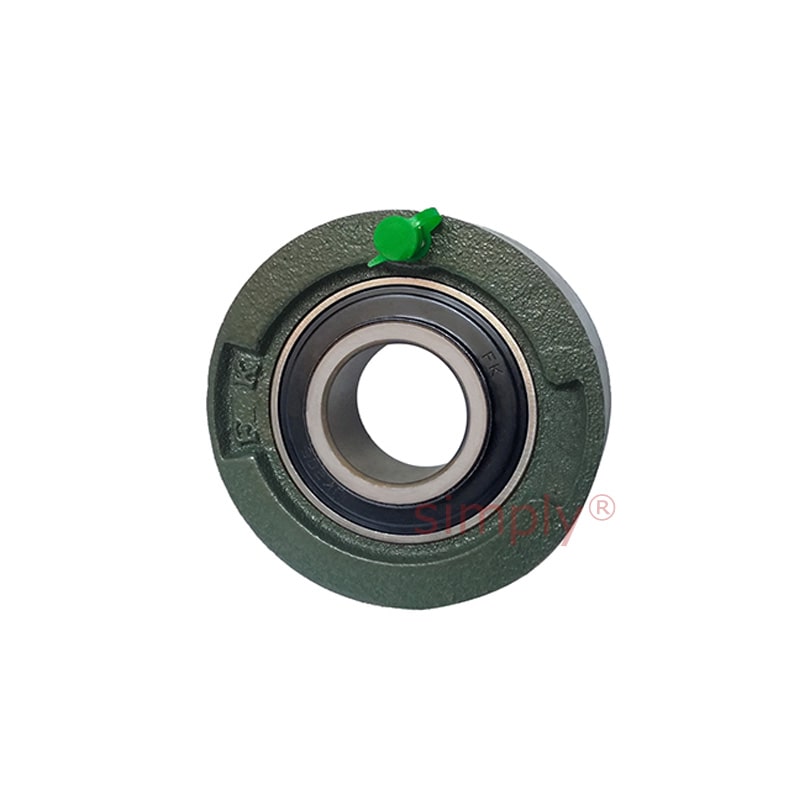

UKC208/H2308 Metric Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 35mm Bore Insert 100mm Outside Dia
UKC208/H2308 Metric Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 35mm Bore Insert 100mm Outside Dia
Regular price
€49,06
ex VAT
Regular price
Sale price
€49,06
ex VAT
In stock
Price Break
10+
€43,66
19+
€41,21
29+
€40,72
39+
€40,23
49+
€39,74
74+
€39,25
99+
€36,80
199+
€36,30
249+
€35,81
499+
€35,32
999+
€34,34
Couldn't load pickup availability
Description
Description
UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 100mm
- Style:
- UKC
Technical
Technical
| Bore d | 35mm |
|---|---|
| Outer Dia a | 100mm |
| g | 30mm |
| r | 2.5mm |
| B | 46mm |
| Bearing No | UK208;H2308 |
| Housing No | C208 |
