SKU: UKC206/H2306

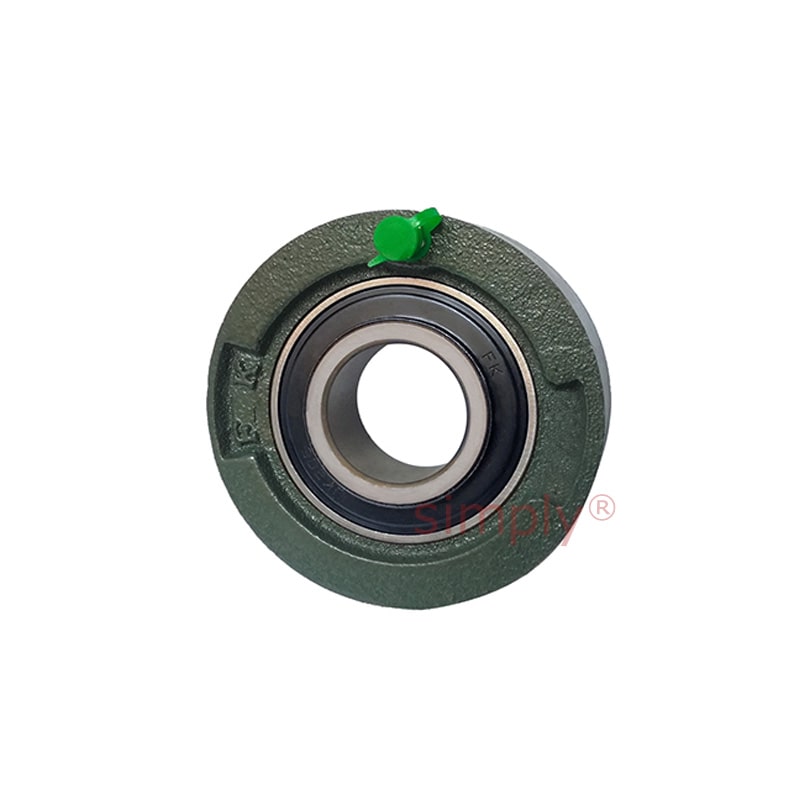

Budget UKC206/H2306 Metric Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 25mm Bore Insert 85mm Outside Dia
Budget UKC206/H2306 Metric Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 25mm Bore Insert 85mm Outside Dia
Regular price
€40,07
ex VAT
Regular price
Sale price
€40,07
ex VAT
In stock
Price Break
10+
€35,66
19+
€33,66
29+
€33,26
39+
€32,86
49+
€32,46
74+
€32,06
99+
€30,05
199+
€29,65
249+
€29,25
499+
€28,85
999+
€28,05
Couldn't load pickup availability
Description
Description

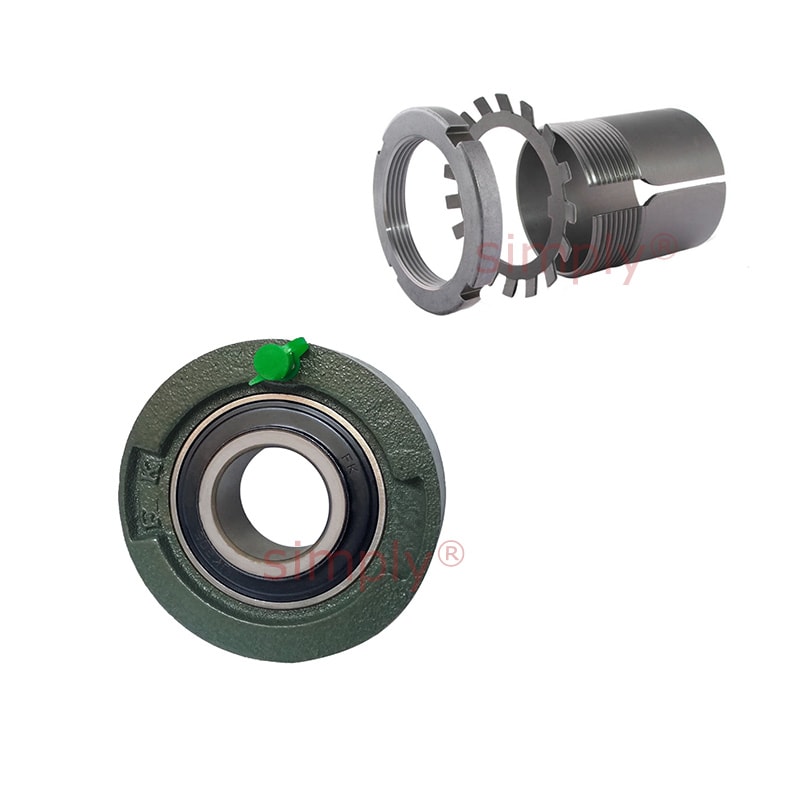

UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 85mm
- Style:
- UKC
Technical
Technical
| Bore d | 25mm |
|---|---|
| Outer Dia a | 85mm |
| g | 27mm |
| r | 2mm |
| B | 38mm |
| Bearing No | UK206;H2306 |
| Housing No | C206 |
