SKU: UCX.13-40.TS.CHAL

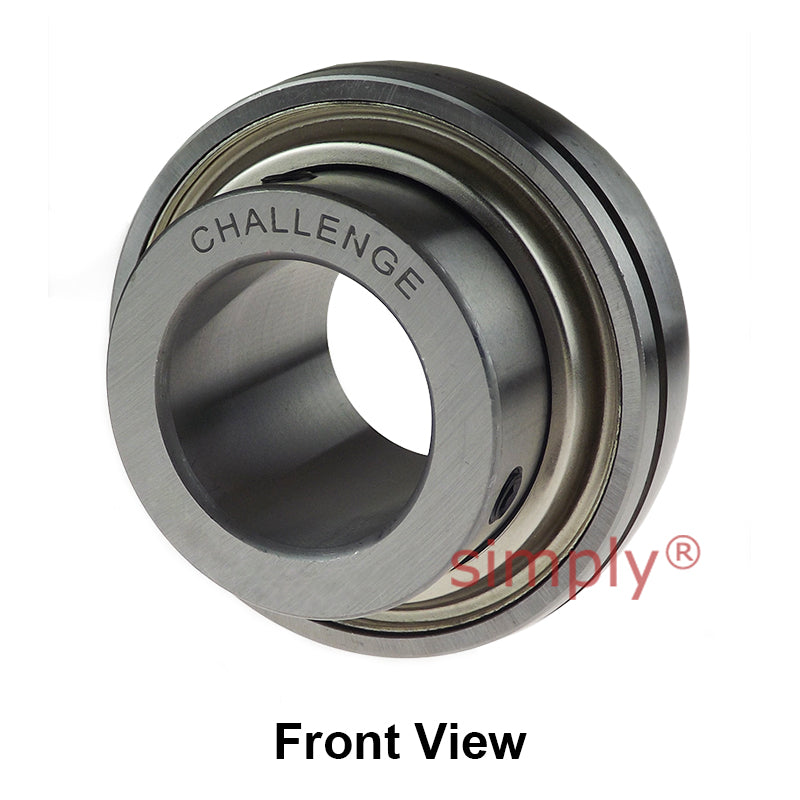

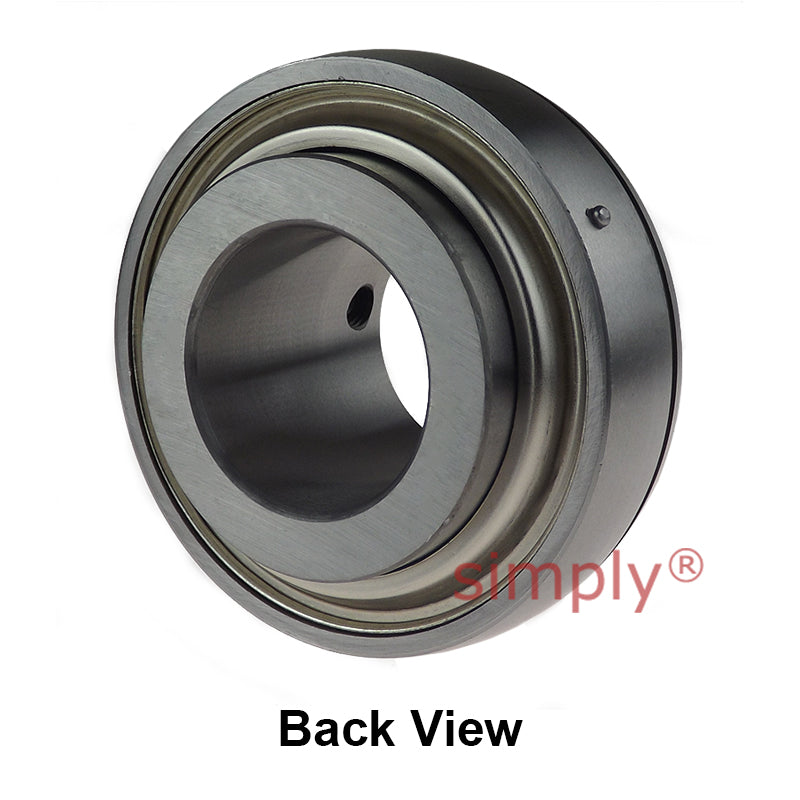

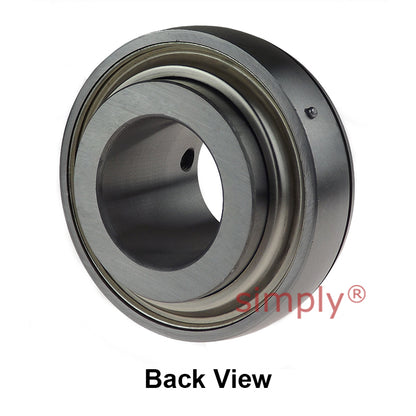

Challenge UCX13-40 Imperial Insert with Grub Screws with 2-1/2 inch Bore 125mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Challenge UCX13-40 Imperial Insert with Grub Screws with 2-1/2 inch Bore 125mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price
€154,64
ex VAT
Regular price
Sale price
€154,64
ex VAT
Equivalent to: UCX.13-40
In stock
Price Break
10+
€137,63
19+
€129,90
29+
€128,35
39+
€126,80
49+
€125,26
74+
€123,71
99+
€115,98
199+
€114,43
249+
€112,89
499+
€111,34
999+
€108,25
Couldn't load pickup availability
Share this product
Description
Description
UCX Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Equivalent: UCX.13-40
- Brand / Quality:
- Challenge - Good Quality
- Inside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Style:
- UCX
- Type:
- Spherical Outer
Technical
Technical
| Shaft Diameter d | 2-1/2 inch |
|---|---|
| Outside Diameter D | 125mm |
| Overall Width Bi | 74.6mm |
| Inner Race Width Be | 30mm |
| Back of Bearing to Centre Line n | 30.2mm |
| Front of Bearing to Centre Line m | 44.4mm |
| Dimension G | 12mm |
| Grub Screws x 2 | 3/8 - 24UNF inch |
| Load Rating (Dynamic) | 4870kg |
| Load Rating (Static) | 3810kg |
| Max Speed | 1400 rev/min |
| Working Temperature | -30°C to +120°C |
