SKU: UCW.203-11

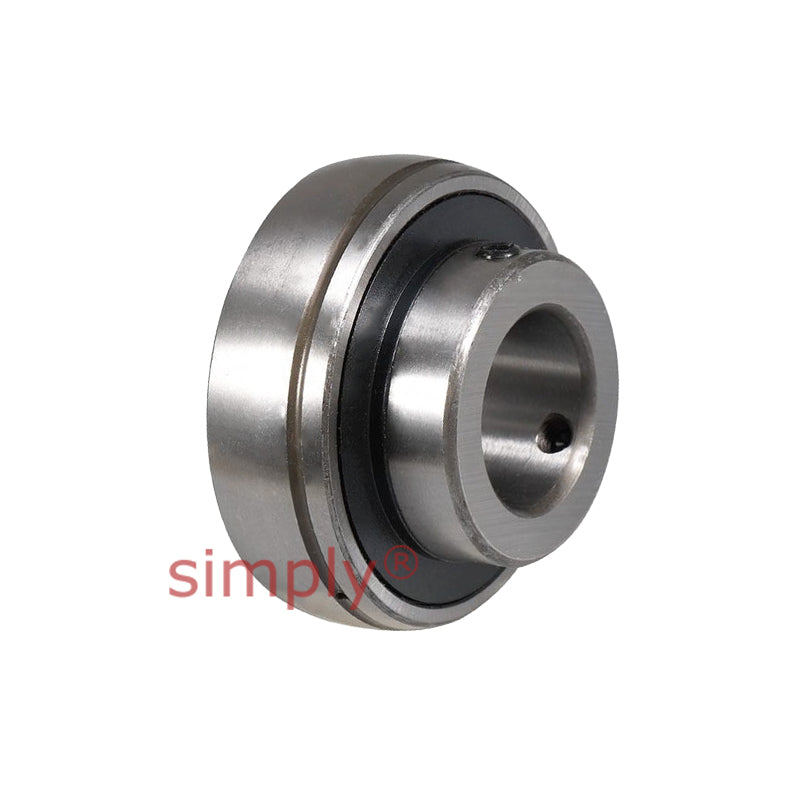

UCW203-11 Imperial Bearing Insert with 11/16 inch Bore 40mm Outside Dia
UCW203-11 Imperial Bearing Insert with 11/16 inch Bore 40mm Outside Dia
Regular price
€24,35
ex VAT
Regular price
Sale price
€24,35
ex VAT
In stock
Price Break
10+
€21,67
19+
€20,45
29+
€20,21
39+
€19,97
49+
€19,72
74+
€19,48
99+
€18,26
199+
€18,02
249+
€17,78
499+
€17,53
999+
€17,05
Couldn't load pickup availability
Share this product
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17.46mm = 0.687 (11/16) inch
- Outside Diameter:
- 40mm
- Style:
- UCW
- Type:
- Spherical Outer
Technical
Technical
| d | 11/16 inch |
|---|---|
| D | 40mm |
| Bi | 27.4mm |
| Be | 14mm |
| n | 11.5mm |
| m | 15.9mm |
| G | 4.2mm |
| Grub screw | 10-32 UNF |
| Weight | 0.1 kg |
| Dynamic load | 973 kgf |
| Static load | 487 kgf |
