SKU: UCW.202-10

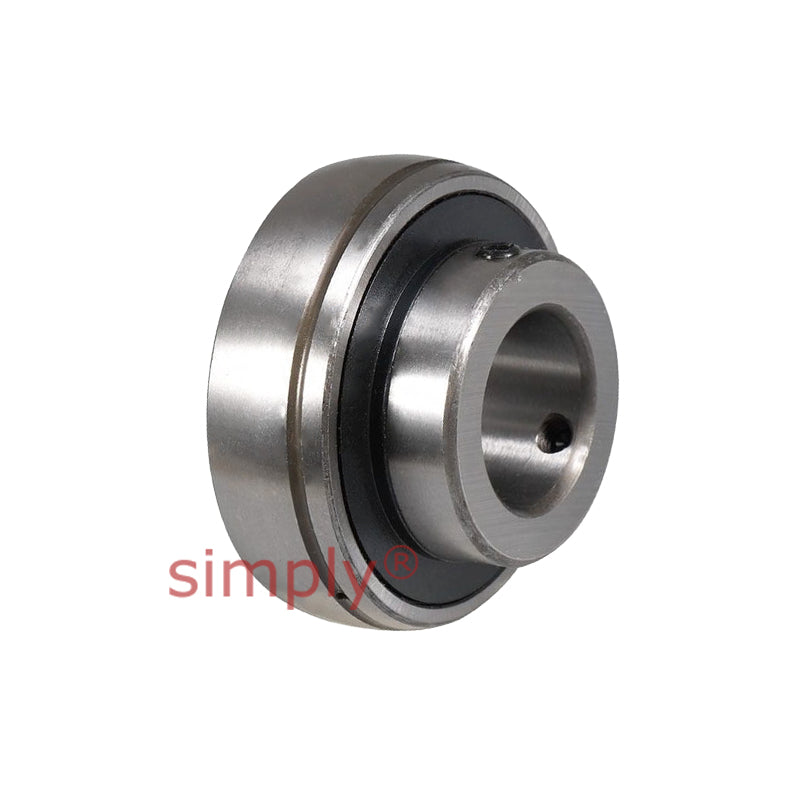

UCW202-10 Imperial Bearing Insert with 5/8 inch Bore 40mm Outside Dia
UCW202-10 Imperial Bearing Insert with 5/8 inch Bore 40mm Outside Dia
Regular price
€10,97
ex VAT
Regular price
Sale price
€10,97
ex VAT
In stock
Price Break
10+
€9,76
19+
€9,21
29+
€9,11
39+
€9,00
49+
€8,89
74+
€8,78
99+
€8,23
199+
€8,12
249+
€8,01
499+
€7,90
999+
€7,68
Couldn't load pickup availability
Share this product
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Outside Diameter:
- 40mm
- Style:
- UCW
- Type:
- Spherical Outer

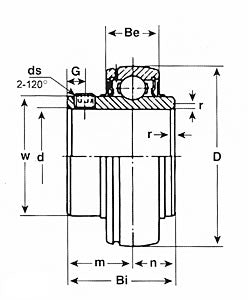

Technical
Technical
| d | 5/8 inch |
|---|---|
| D | 40mm |
| Bi | 27.4mm |
| Be | 14mm |
| n | 11.5mm |
| m | 15.9mm |
| G | 4.2mm |
| Grub screw | 10-32 UNF |
| Weight | 0.106 kg |
| Dynamic load | 973 kgf |
| Static load | 487 kgf |
