SKU: UCTX14

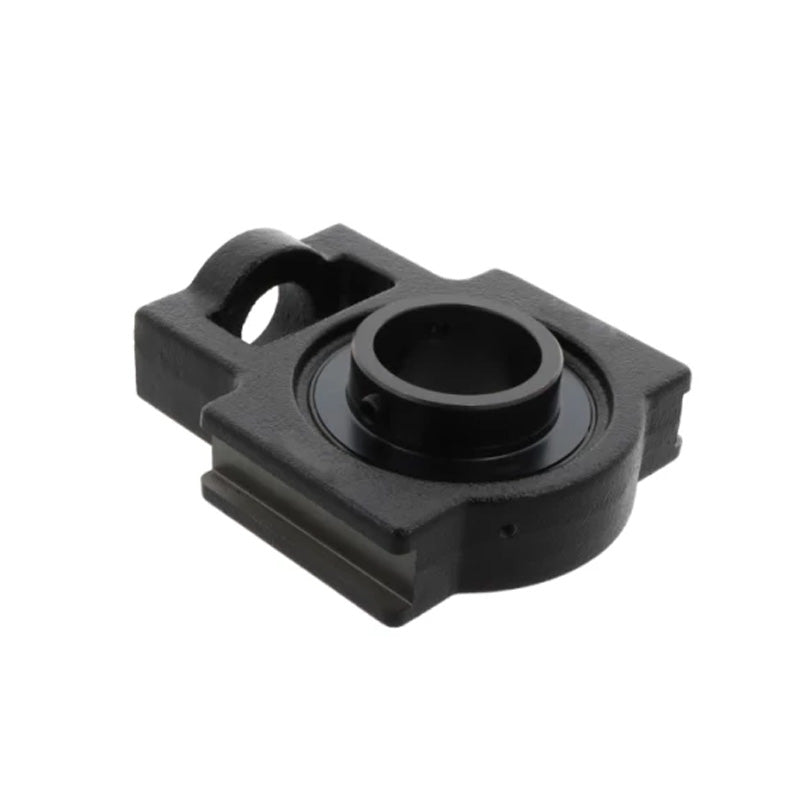

UCTX14 Metric Cast Iron Take Up Unit Housing with 70mm Bore Insert
UCTX14 Metric Cast Iron Take Up Unit Housing with 70mm Bore Insert
Regular price
€97,44
ex VAT
Regular price
Sale price
€97,44
ex VAT
In stock
Price Break
10+
€86,72
19+
€81,85
29+
€80,88
39+
€79,90
49+
€78,93
74+
€77,95
99+
€73,08
199+
€72,11
249+
€71,13
499+
€70,16
999+
€68,21
Couldn't load pickup availability
Description
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 70mm
- Style:
- UCTX
Technical
Technical
| d | 70mm |
|---|---|
| o | 32mm |
| g | 23mm |
| p | 111mm |
| q | 70mm |
| s | 41mm |
| b | 121mm |
| k | 26mm |
| e | 151mm |
| a | 167mm |
| w | 232mm |
| j | 48mm |
| l | 70mm |
| h | 140mm |
| B | 77.8mm |
| n | 33.3mm |
| Bearing no | UCX14 |
| Housing no | TX14 |
| Weight | 7.3 kg |
