SKU: UCTX13

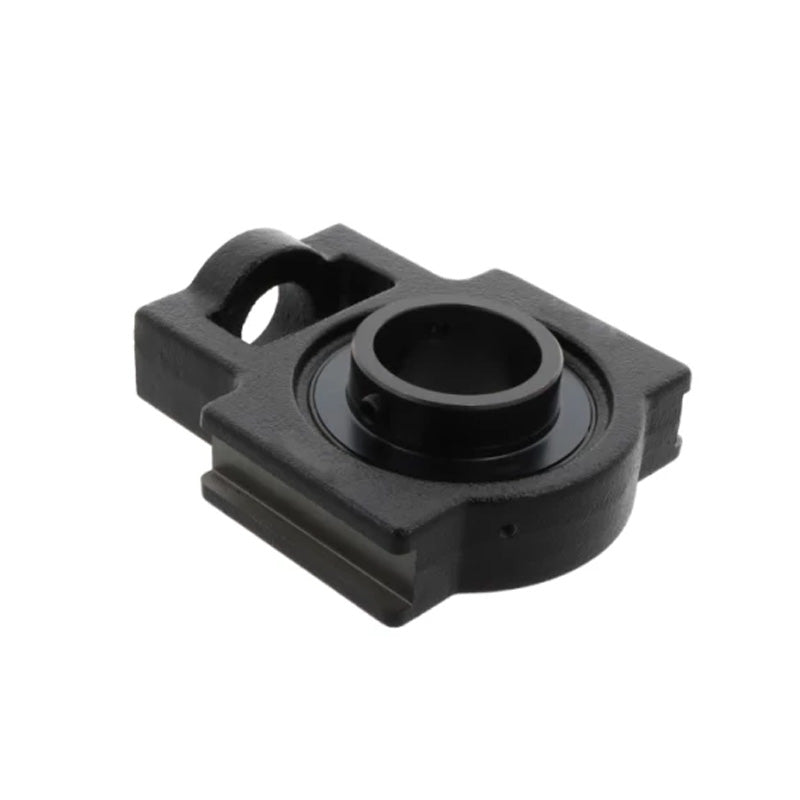

UCTX13 Metric Cast Iron Take Up Unit Housing with 65mm Bore Insert
UCTX13 Metric Cast Iron Take Up Unit Housing with 65mm Bore Insert
Regular price
€93,69
ex VAT
Regular price
Sale price
€93,69
ex VAT
In stock
Price Break
10+
€83,38
19+
€78,70
29+
€77,76
39+
€76,83
49+
€75,89
74+
€74,95
99+
€70,27
199+
€69,33
249+
€68,39
499+
€67,46
999+
€65,58
Couldn't load pickup availability
Description
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 65mm
- Style:
- UCTX
Technical
Technical
| d | 65mm |
|---|---|
| o | 32mm |
| g | 23mm |
| p | 111mm |
| q | 70mm |
| s | 41mm |
| b | 121mm |
| k | 26mm |
| e | 151mm |
| a | 167mm |
| w | 224mm |
| j | 48mm |
| l | 70mm |
| h | 137mm |
| B | 74.6mm |
| n | 30.2mm |
| Bearing no | UCX13 |
| Housing no | TX13 |
| Weight | 7.1 kg |
