SKU: UCTX12

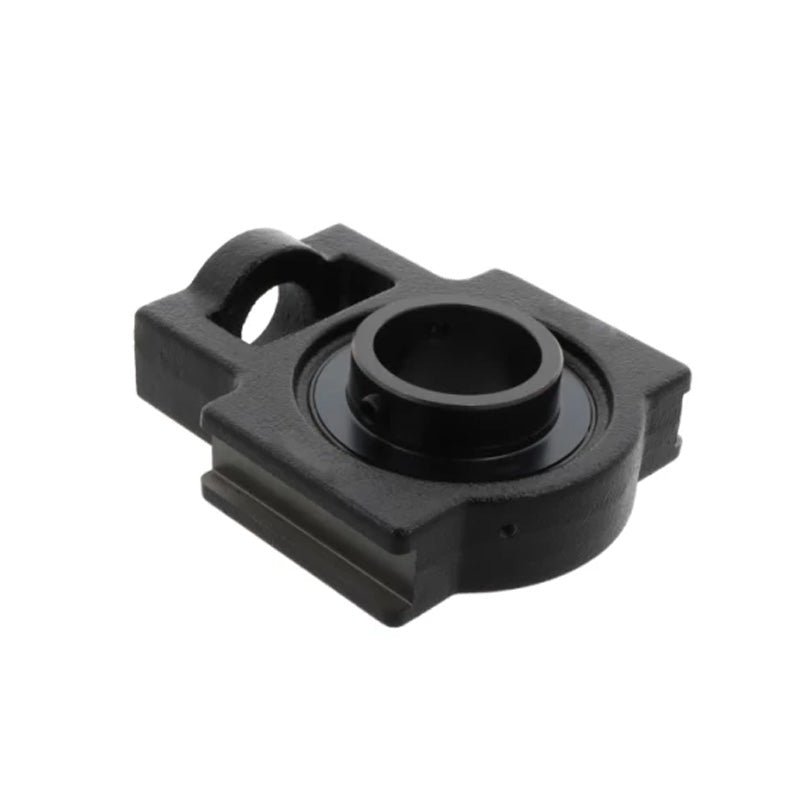

UCTX12 Metric Cast Iron Take Up Unit Housing with 60mm Bore Insert
UCTX12 Metric Cast Iron Take Up Unit Housing with 60mm Bore Insert
Regular price
€74,88
ex VAT
Regular price
Sale price
€74,88
ex VAT
In stock
Price Break
10+
€66,64
19+
€62,90
29+
€62,15
39+
€61,40
49+
€60,65
74+
€59,90
99+
€56,16
199+
€55,41
249+
€54,66
499+
€53,91
999+
€52,42
Couldn't load pickup availability
Description
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Style:
- UCTX
Technical
Technical
| d | 60mm |
|---|---|
| o | 32mm |
| g | 23mm |
| p | 111mm |
| q | 70mm |
| s | 41mm |
| b | 121mm |
| k | 26mm |
| e | 151mm |
| a | 167mm |
| w | 224mm |
| j | 48mm |
| l | 70mm |
| h | 137mm |
| B | 65.1mm |
| n | 25.4mm |
| Bearing no | UCX12 |
| Housing no | TX12 |
| Weight | 7.3 kg |
