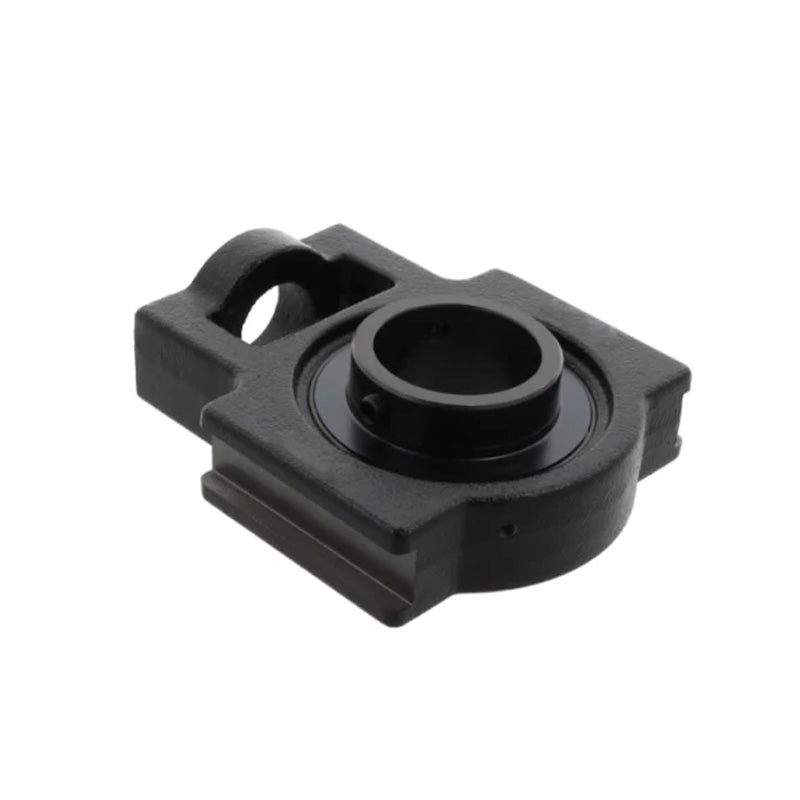

UCTX10 Metric Cast Iron Take Up Unit Housing with 50mm Bore Insert
UCTX10 Metric Cast Iron Take Up Unit Housing with 50mm Bore Insert
Regular price
€65,91
ex VAT
Regular price
Sale price
€65,91
ex VAT
In stock
Price Break
10+
€58,66
19+
€55,36
29+
€54,71
39+
€54,05
49+
€53,39
74+
€52,73
99+
€49,43
199+
€48,77
249+
€48,11
499+
€47,46
999+
€46,14
Couldn't load pickup availability
Description
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Style:
- UCTX
Technical
Technical
| d | 50mm |
|---|---|
| o | 25mm |
| g | 21mm |
| p | 102mm |
| q | 64mm |
| s | 35mm |
| b | 95mm |
| k | 22mm |
| e | 130mm |
| a | 146mm |
| w | 171mm |
| j | 42mm |
| l | 64mm |
| h | 106mm |
| B | 55.6mm |
| n | 22.2mm |
| Bearing no | UCX10 |
| Housing no | TX10 |
| Weight | 4.2 kg |
