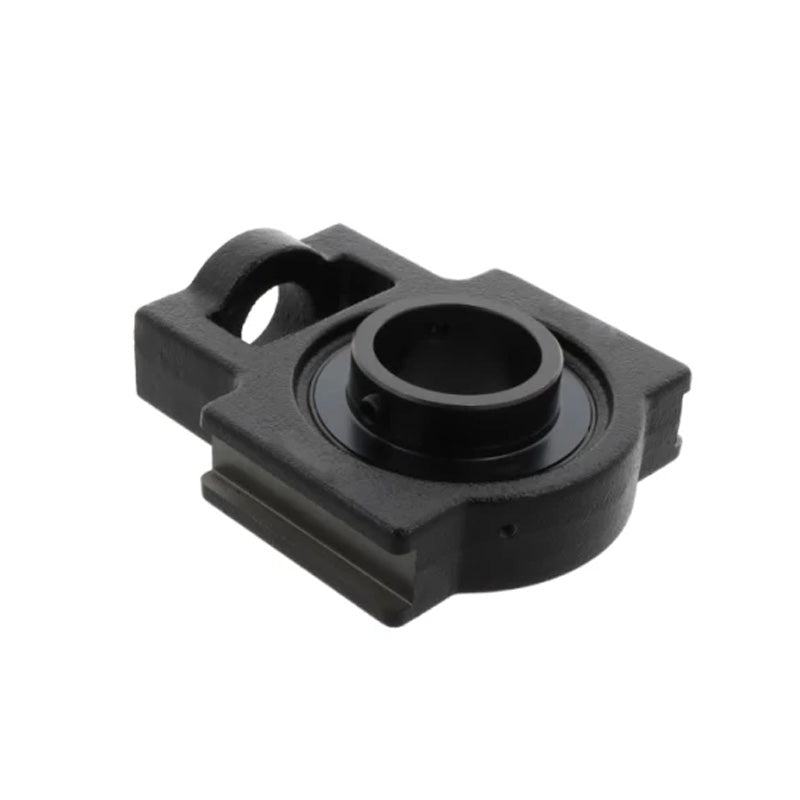

UCTX09 Metric Cast Iron Take Up Unit Housing with 45mm Bore Insert
UCTX09 Metric Cast Iron Take Up Unit Housing with 45mm Bore Insert
Regular price
€41,14
ex VAT
Regular price
Sale price
€41,14
ex VAT
In stock
Price Break
10+
€36,61
19+
€34,56
29+
€34,15
39+
€33,73
49+
€33,32
74+
€32,91
99+
€30,86
199+
€30,44
249+
€30,03
499+
€29,62
999+
€28,80
Couldn't load pickup availability
Description
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Style:
- UCTX
Technical
Technical
| d | 45mm |
|---|---|
| o | 19mm |
| g | 18mm |
| p | 83mm |
| q | 49mm |
| s | 29mm |
| b | 86mm |
| k | 16mm |
| e | 102mm |
| a | 117mm |
| w | 151mm |
| j | 38mm |
| l | 49mm |
| h | 92mm |
| B | 51.6mm |
| n | 19mm |
| Bearing no | UCX09 |
| Housing no | TX09 |
| Weight | 2.7 kg |
