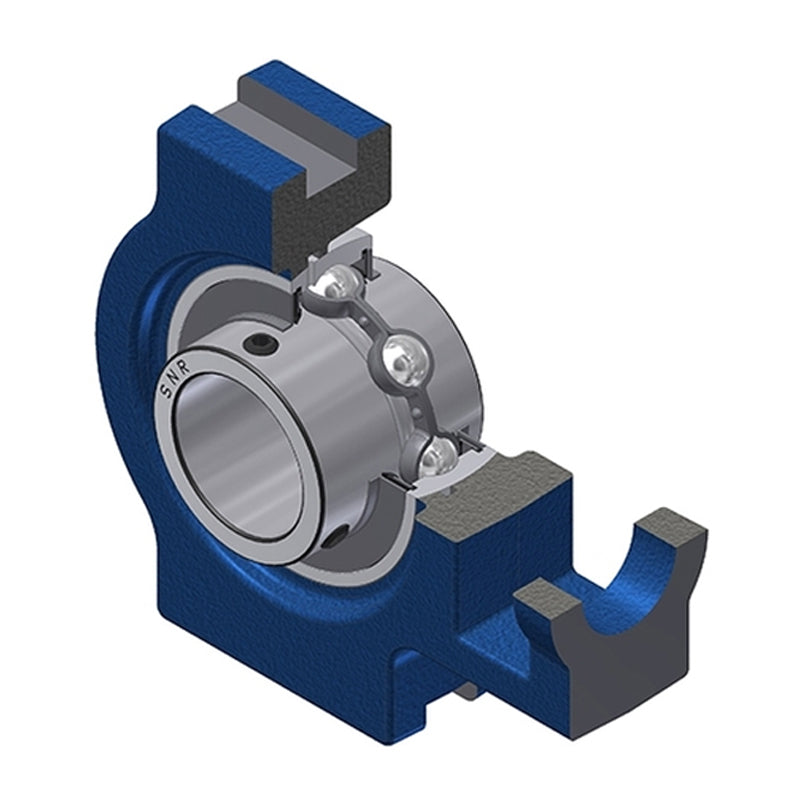

SNR UCT328 Metric Cast Iron Take Up Unit with 140mm Bore Bearing Unit - Allow 2-3 Days
SNR UCT328 Metric Cast Iron Take Up Unit with 140mm Bore Bearing Unit - Allow 2-3 Days
Regular price
€2.004,40
ex VAT
Regular price
Sale price
€2.004,40
ex VAT
In stock
Price Break
2+
€1.904,18
5+
€1.803,96
10+
€1.703,74
15+
€1.603,52
20+
€1.563,43
30+
€1.523,34
50+
€1.322,90
Couldn't load pickup availability
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 140mm
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 140mm |
| A | 155mm |
| A1 | 50mm |
| A2 | 100mm |
| B | 145mm |
| H | 415mm |
| H1 | 380mm |
| H2 | 230mm |
| L | 515mm |
| L1 | 315mm |
| L2 | 52mm |
| L3 | 255mm |
| N | 80mm |
| N1 | 70mm |
| N2 | 160mm |
| S | 59mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 275 kN |
| Static load C0 | 272 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 83.2 kg |
