SKU: UCT321-SNR

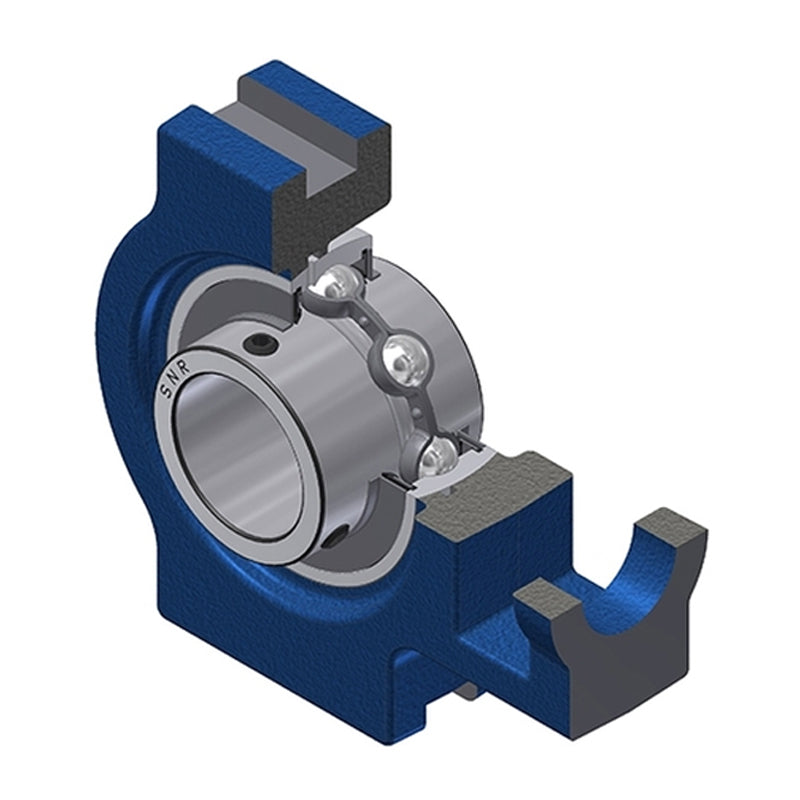

SNR UCT321 Metric Cast Iron Take Up Unit with 105mm Bore Bearing Unit - Allow 2-3 Days
SNR UCT321 Metric Cast Iron Take Up Unit with 105mm Bore Bearing Unit - Allow 2-3 Days
Regular price
€881,82
ex VAT
Regular price
Sale price
€881,82
ex VAT
In stock
Price Break
3+
€716,87
4+
€679,14
9+
€641,41
19+
€603,68
49+
€588,59
99+
€573,50
499+
€498,04
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 105mm
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 105mm |
| A | 120mm |
| A1 | 35mm |
| A2 | 75mm |
| B | 112mm |
| H | 290mm |
| H1 | 260mm |
| H2 | 175mm |
| L | 347mm |
| L1 | 212mm |
| L2 | 34mm |
| L3 | 200mm |
| N | 59mm |
| N1 | 48mm |
| N2 | 115mm |
| S | 44mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 182 kN |
| Static load C0 | 155 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 30 kg |
