SKU: UCT320T20-SNR

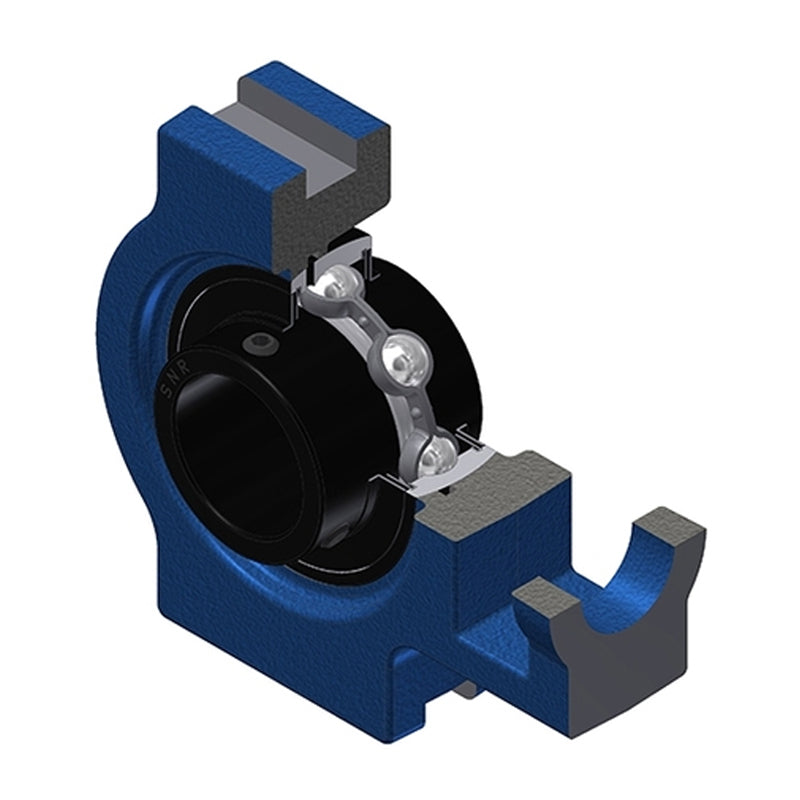

SNR UCT320T20 Metric Cast Iron Take Up Unit with 100mm Bore Bearing Unit Wide Temperature Version - Allow 2-3 Days
SNR UCT320T20 Metric Cast Iron Take Up Unit with 100mm Bore Bearing Unit Wide Temperature Version - Allow 2-3 Days
Regular price
€2.117,19
ex VAT
Regular price
Sale price
€2.117,19
ex VAT
In stock
Price Break
3+
€1.721,15
4+
€1.630,57
9+
€1.539,98
19+
€1.449,39
49+
€1.413,16
99+
€1.376,92
499+
€1.195,75
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 100mm
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 100mm |
| A | 120mm |
| A1 | 35mm |
| A2 | 75mm |
| B | 108mm |
| H | 290mm |
| H1 | 260mm |
| H2 | 175mm |
| L | 345mm |
| L1 | 210mm |
| L2 | 34mm |
| L3 | 200mm |
| N | 59mm |
| N1 | 48mm |
| N2 | 115mm |
| S | 42mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 171.6 kN |
| Static load C0 | 140 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 200°C |
| Mass | 30.6 kg |
