SKU: UCT318

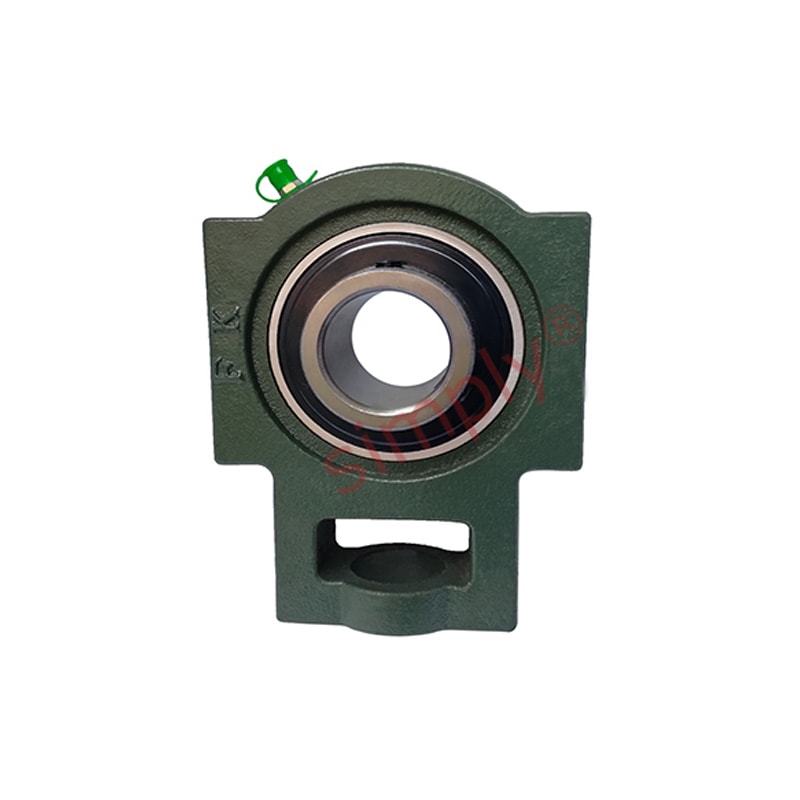

UCT318 Metric Cast Iron Take Up Unit Housing with 90mm Bore Insert
UCT318 Metric Cast Iron Take Up Unit Housing with 90mm Bore Insert
Regular price
€318,63
ex VAT
Regular price
Sale price
€318,63
ex VAT
In stock
Price Break
10+
€283,58
19+
€267,65
29+
€264,46
39+
€261,28
49+
€258,09
74+
€254,90
99+
€238,97
199+
€235,79
249+
€232,60
499+
€229,41
999+
€223,04
Couldn't load pickup availability
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 90mm
- Style:
- UCT
Technical
Technical
| d | 90mm |
|---|---|
| o | 46mm |
| g | 32mm |
| p | 160mm |
| q | 106mm |
| s | 57mm |
| b | 175mm |
| k | 32mm |
| e | 228mm |
| a | 255mm |
| w | 312mm |
| j | 110mm |
| l | 66mm |
| h | 192mm |
| B | 96mm |
| n | 40mm |
| Bearing no | UC318 |
| Housing no | T318 |
| Weight | 21 kg |
